Skid Tanks (UL142)
UL 142 skid tanks for safe, mobile fuel and liquid storage
These tanks are engineered for the secure storage of flammable and combustible liquids, meeting stringent safety standards established by Underwriters Laboratories. These tanks are available in both single- and double-wall configurations to suit a range of compliance and containment needs across industrial, commercial, and agricultural sectors.
Designed with mobility in mind, each tank features a skid-mounted base that allows for easy transportation, stable placement, and quick setup in the field. Whether you need on-site fuel storage, backup fuel supply for emergency generators, fleet refueling, or temporary liquid containment, these tanks deliver a dependable, cost-effective solution.
Looking for fuel storage solutions? We can help! Call us at 1-863-270-8118 or contact us to discuss your needs.
Skid Steel Fuel Tank Features
- UL-142 Compliant: Certified for safe aboveground storage of flammable and combustible liquids, meeting rigorous Underwriters Laboratories safety standards.
- Versatile Applications: Suitable for fuel, lubricant oils, and various liquid storage across industrial, commercial, and agricultural operations.
- Double-Wall Construction: Offers built-in secondary containment to prevent leaks and enhance environmental and workplace safety.
- Customizable coatings: Comes standard with a gray primer coat, with optional finishes and protective coatings to match specific environmental or branding requirements.
Single Walled Specifications
| Capacity (Gal) | Inner Tank Dimensions (Inches) | Weights (lbs) SW | Download SW Drawings |
|---|---|---|---|
| 150 | 30 x 48 | 400 | Drawing |
| 300 | 38 x 60 | 550 | Drawing |
| 550 | 48 x 72 | 800 | Drawing |
| 1000 | 45 x 144 | 1500 | Drawing |
| 1000 | 48x132 | 1500 | Drawing |
| 2000 | 64 x 144 | 2300 | Drawing |
| 3000 | 64 x 216 | 3400 | Drawing |
| 4000 | 64 x 288 | 5150 | Drawing |
| 6000 | 96 x 192 | 6675 | Drawing |
| 8000 | 96 x 256 | 8625 | Drawing |
| 10000 | 96 x 324 | 10350 | Drawing |
| 12000 | 96 x 384 | 12750 | Drawing |
| 15000 | 120 x 312 | 15860 | Drawing |
| 20000 | 120 x 408 | 20848 | Drawing |
Double Walled Specifications
| Capacity (Gal) | Inner Tank Dimensions (Inches) | Weights (lbs) DW | Download DW Drawings |
|---|---|---|---|
| 150 | 30 x 48 | 600 | Drawing |
| 300 | 38 x 60 | 1000 | Drawing |
| 550 | 48 x 72 | 1450 | Drawing |

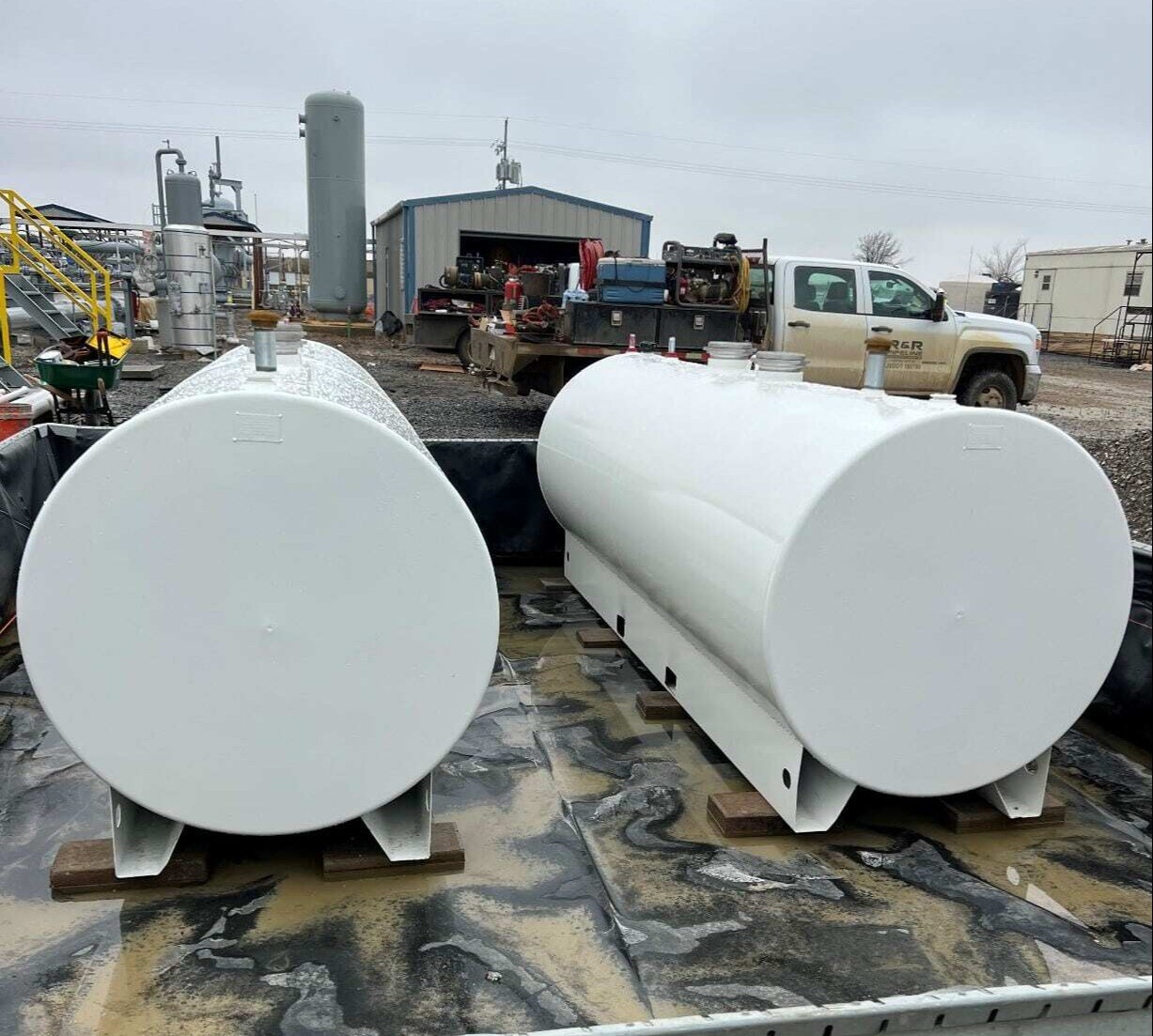

| 1000 | 45 x 144 | 2025 | Drawing |
| 1000 | 48 x 132 | 2025 | Drawing |
| 2000 | 64 x 144 | 3950 | Drawing |
| 3000 | 64 x 216 | 5250 | Drawing |
| 4000 | 64 x 288 | 7500 | Drawing |
| 6000 | 96 x 192 | 11100 | Drawing |

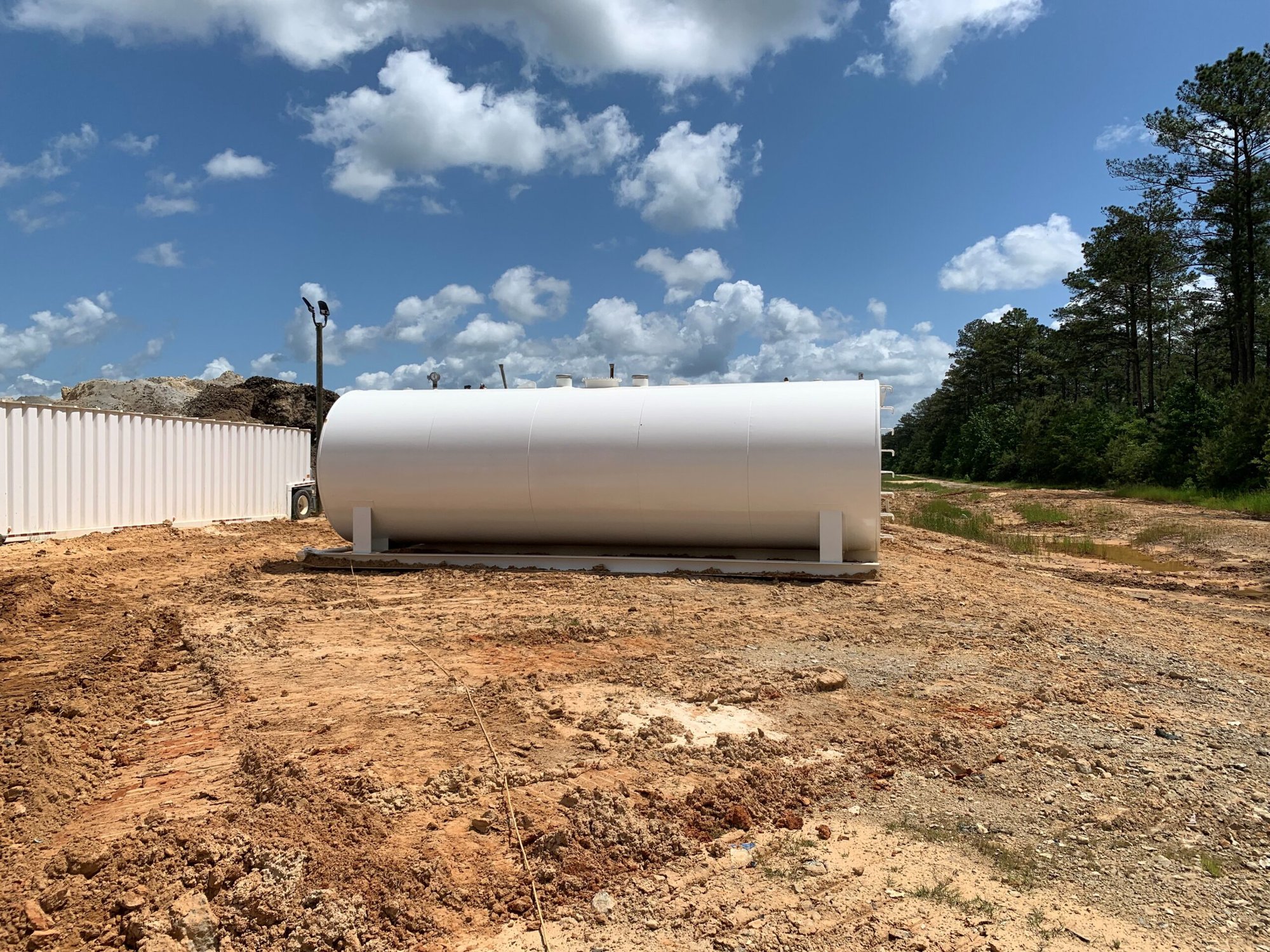

| 8000 | 96 x 256 | 14500 | Drawing |
| 10000 | 96 x 324 | 17250 | Drawing |
| 12000 | 96 x 384 | 20000 | Drawing |
| 15000 | 120 x 312 | 24790 | Drawing |
| 20000 | 120 x 408 | 29200 | Drawing |
Skid Steel Fuel Tank Applications
- Construction Sites: Store and dispense fuel for heavy equipment such as bulldozers, excavators, and cranes. Skid tanks help avoid costly delays by keeping operations running without fuel interruptions.
- Agricultural Operations: Enable on-site storage of diesel and gasoline for tractors, irrigation pumps, combines, and other equipment. Minimize downtime and increase farm efficiency.
- Industrial Facilities: Safely store fuel and lubricants used in manufacturing and machinery maintenance. Reliable on-site supply reduces production interruptions.
- Remote Locations: Used in mining, forestry, and isolated job sites, these tanks provide a steady fuel source to keep critical operations running around the clock.
- Emergency Backup: Trusted by hospitals, data centers, and critical infrastructure to store fuel for backup generators and ensure continuous power supply during outages.
Browse our full range of aboveground steel tanks by visiting the Aboveground Tanks page.
Looking for fuel storage solutions? We can help! Call us at 1-863-270-8118 or contact us to discuss your needs.
