Pressure Washer Trailer
550 Gallon Pressure Washer Trailer
Dust Control & Pressure Washing in One DOT-Ready Trailer
This 550 gallon pressure washer trailer combines a dust control water wagon and a cold-water pressure washer in one tow-ready unit. A 500-gallon poly tank, 2″ transfer pump for dust abatement, and a 3 GPM @ 2,700 PSI washer system give you everything you need to wash equipment, control dust, and clean work areas on the same trip.
Looking for water supply solutions? We can help! Call us at 1-863-270-8118 or contact us to discuss your needs.
550 Gallon Commercial Pressure Washer Trailer
The 550 gallon pressure washer trailer is a workhorse for contractors, rental yards, and facility teams that need both high-pressure cleaning and dust control in one package. Use it as a pressure washer trailer for equipment and pavement, then switch to dust abatement using the same trailer and tank.
One trailer, two core jobs: dust abatement and pressure washing. This unit starts with a 550 gallon Express-style water wagon and adds a 3 GPM @ 2,700 PSI cold-water pressure washer, hose reel, and spray gun for on-site cleaning.
Pressure Washer Trailer Features
Dust Abatement System
- 2" Tsurumi transfer pump with 4 HP Honda engine.
- Dual-nozzle spray bar with approx. 25' swath for road and jobsite dust control.
- 20' x 2" suction hose with strainer plus 25' x 1½" fire hose for spot work.
- Anti-siphon fill to protect water supply.

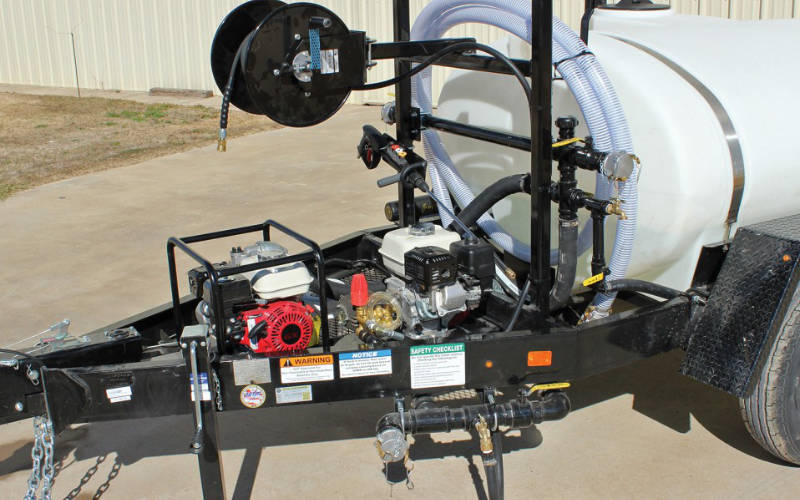

Pressure Washer System
- Triplex pressure washer pump, 3 GPM @ 2,700 PSI driven by a 5 HP Honda engine.
- Hand-crank high-pressure hose reel on swivel mount with 25' hose.
- Trigger gun with four quick-connect nozzles for different spray patterns.
- Downstream low-pressure soap application for detergents and degreasers.
Trailer & Tank Package
- 550 gallon elliptical poly tank with baffles for stable towing.
- 6" channel iron trailer frame with LED lights.
- Tandem spring axles, surge brakes, and ST225-75D15 tires.
- DOT-ready design for towing on public roads (check local requirements).
550 Gallon Pressure Washer Trailer Specifications
| Component | Specification |
|---|---|
| Dust Abatement Pump | 2" Tsurumi transfer pump w/ 4 HP Honda |
| Dust Abatement Spraybar | Dual nozzle spray bar, approx. 25' swath |
| Dust Abatement Hoses | 20' x 2" suction hose; 25' x 1½" fire hose |
| Pressure Washer Pump | Triplex pump, 3 GPM @ 2,700 PSI, 5 HP Honda |
| Pressure Washer Hose Reel | Hand-crank reel on swivel mount; 25' high-pressure hose |
| Pressure Washer Spray Gun | Trigger gun with 4 quick-connect nozzles |
| Soap Application | Downstream low-pressure venturi for detergent |
| Tank | 550 gal. elliptical poly tank with baffles |
| GVWR | 6,000 lb |
| Axles | Tandem with springs |
| Tires | ST225-75D15 |
| Brakes | Surge |
| Hitch | 2-5/16" ball coupler, 20,000 lb rating |
| Length | 174" |
| Width | 78" |
| Height | 65" |
| Trailer Frame | 6" channel iron with LED lights |
Pressure Washer Trailer Applications
This 550 gallon pressure washer trailer is designed for year-round work across multiple industries. Common applications include:
- Construction & industrial sites: wash down equipment, clean concrete forms, cool saws, and control dust on access roads.
- Rental yards: offer a ready-to-rent pressure washing trailer for contractors and municipalities.
- Agriculture & ranching: clean tractors and implements, wash barns and pens, and reduce dust on farm roads.
- Municipal & public works: clean sidewalks and parks, remove graffiti, and rinse public facilities.
- Fleet & facility maintenance: wash trucks, trailers, dumpsters, tanks, and loading areas.
- Residential & service contractors: offer mobile cleaning of house exteriors, driveways, patios, and jobsite cleanup.
Frequently Asked Questions
Is the 550 gallon pressure washer trailer DOT-compliant?
The trailer is built with lights, safety chains, brakes, and a 2-5/16" ball coupler so it can be towed on public roads. Always confirm local DOT and licensing requirements for your state before hauling water at full capacity.
Can I use hot water with this pressure washer trailer?
This model is equipped with a cold-water pressure washer. If you need hot water, we also offer a dedicated hot pressure washer trailer option. Our team can help you compare the cold-water and hot-water packages and recommend the best setup for your cleaning and degreasing jobs.
What kind of detergents can I run through the system?
Most users apply detergents and degreasers through the downstream low-pressure soap injection system. Always follow the chemical manufacturer’s instructions and check compatibility with the pump, hose, and seals.
How does this compare to a standard water trailer?
A standard water trailer is ideal for dust control and water transport. This 550 gallon pressure washer trailer adds a 2,700 PSI washer system, hose reel, and spray gun so you can both control dust and perform high-pressure cleaning with the same rig.
Can I customize hose length or add additional reels?
Yes. Many customers add longer pressure hoses, extra fire hoses, or additional reels. Tell us how you plan to use the trailer and we can recommend a plumbing and hose layout that fits your work.
