Corrugated Steel Water Storage Tank | 20000 Gallon

The Pioneer XLR 15/2 is a 20,000 gallon class corrugated steel water storage tank engineered for rural and ranch properties, rainwater harvesting, livestock operations, and well water storage. With a nominal capacity of 20,243 US gallons in a low profile 22 ft diameter footprint, it delivers serious storage capacity while staying easy to site, fill, and maintain.

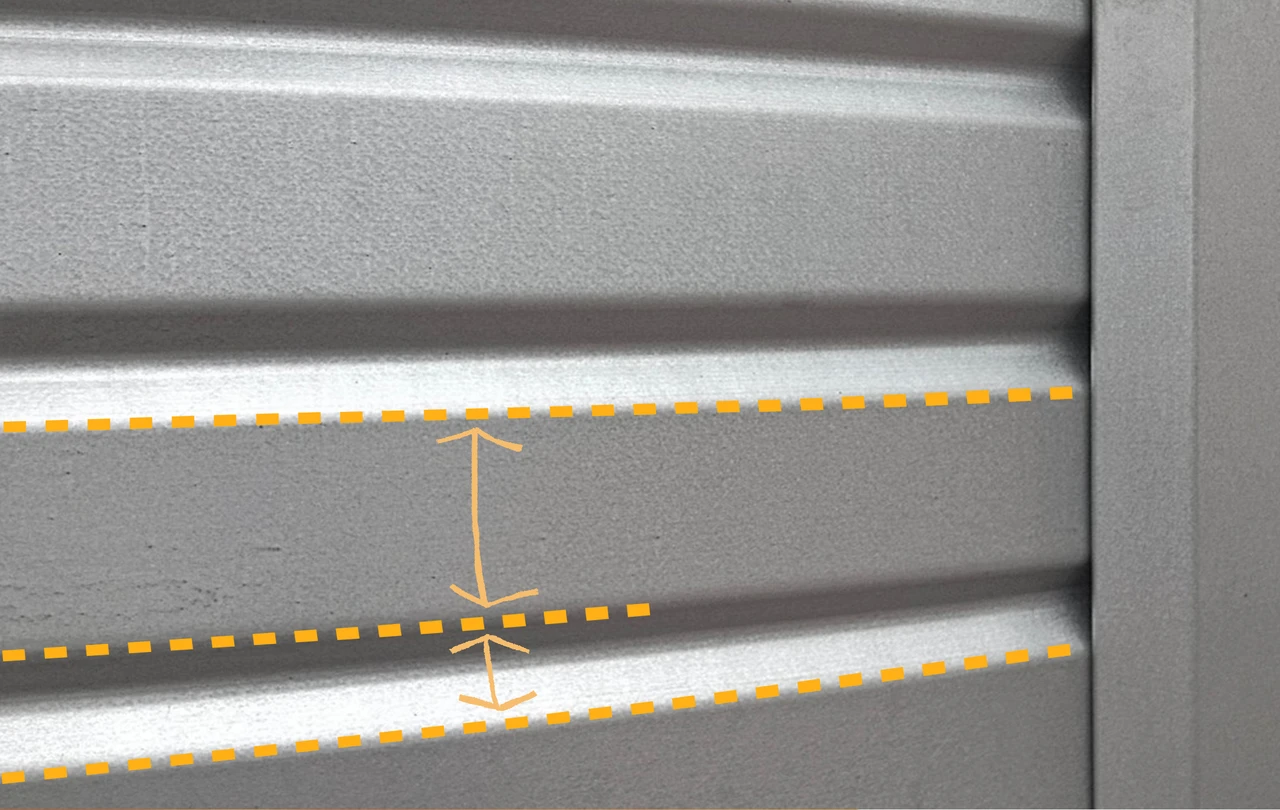

Unlike conventional corrugated tanks built from repurposed roofing sheet, every Pioneer tank wall is rolled into the patented PIONEER V-LOCK® panel profile. The V-LOCK® rib gives the wall market leading vertical and horizontal load strength and provides continuous support behind the internal liner, so the liner is not stretched or stressed the way it is in a standard corrugated wall. The result is a stronger tank and a longer lasting liner.

Water is stored inside the AQUALINER® Fresh tank liner, a food grade polyethylene and polypropylene membrane with Sanitized® silver based antimicrobial technology that inhibits mold, algae, and biofilm. The AQUALINER® Fresh tank liner utilized within Pioneer Water Tanks is NSF 61 certified for drinking water storage, and it is certified PFAS free, BPA free, and phthalate free. For potable applications, confirm the rating for your application when you request your quote.

Each XLR tank ships as a complete kit and carries a 20 year warranty when installed by a Pioneer Authorized Installer on an appropriate foundation. The XLR series is intended for non permitted projects; for permitted or engineered projects, ask our team about the Pioneer XLE engineered series.

One Clarion is a Pioneer Water Tanks Authorized Dealer. Pricing is provided by custom quote based on your site, fittings, and freight. Use the Request a Quote button and our team will respond with a complete quote for your project.

Features

• 20,243 US gallon nominal capacity in a 22 ft diameter, 7 ft 2 in wall height footprint
• ZINCALUME® steel wall panels rolled in the patented PIONEER V-LOCK® profile for superior load strength and full liner support
• AQUALINER® Fresh internal liner: NSF 61 certified, food grade, PFAS free, BPA free, phthalate free, with Sanitized® antimicrobial technology
• Complete kit: tank body, roof system with trusses and roof sheets, top hoop, geotextile underlay, condensation barrier, lockable roof access hatch and removable ladder, 2 in outlet with ball valve, 6 in overflow, stainless steel inlet basket strainer, and sacrificial anodes
• Zincalume finish standard; Pale Eucalypt color option available on this size
• 20 year warranty when installed by a Pioneer Authorized Installer on an appropriate foundation
• Buried magnesium sacrificial anodes divert corrosion away from the tank base for extended service life
• Quote only product: no published pricing, every quote is built for your site and fittings

Applications

The XLR 15/2 is configured at quote time for your application and fittings. Common applications include:

• Rainwater harvesting: pair with your catchment area as a large capacity rainwater collection tank for home, shop, or barn roofs
• Well water storage: buffer low producing wells with 20,000 gallons of reserve well water storage
• Livestock and ranch: reliable stock water for cattle, horses, and rotational grazing systems
• Rural fire and domestic reserve: non permitted fire and household reserve storage; for permitted fire protection projects, contact our team about engineered options
• Drinking water: the NSF 61 certified liner supports potable storage; confirm the rating for your application with our team

Finish option on this size: Zincalume (standard) or Pale Eucalypt. Tell us your preference in the quote form.
