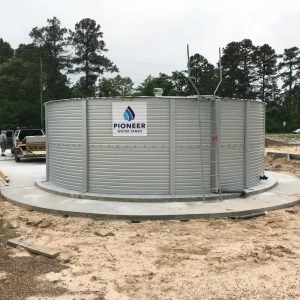

Images may be inaccurate. See specs below to ensure accuracy.
Specifications
Size
- Capacity
- 5000 gal
- Length
- 38″
- Width
- 91″
- Height
- 22″
Build
- Installation Note
- This tank is suitable for outdoor installation only in states with minimal or no snow load. However, it can be installed indoors in all states.
- Potable Water
- Yes
Ordering
- Brand
- One Clarion
- SKU
- OC374000010520
Key specs
- Capacity
- 5000 gal
- Length
- 38″
- Width
- 91″
- Height
- 22″
- Freight to your ZIPEstimate it below or at checkout
All specifications
Size
- Capacity
- 5000 gal
- Length
- 38″
- Width
- 91″
- Height
- 22″
Build
- Installation Note
- This tank is suitable for outdoor installation only in states with minimal or no snow load. However, it can be installed indoors in all states.
- Potable Water
- Yes
Ordering
- Brand
- One Clarion
- SKU
- OC374000010520
Description
With our 5,000 gallon DIY Water Storage Tank Kit, you can build a water tank for a fraction of the cost. Made for locations that have little to no snow load, these tanks will withstand significant seismic and wind activity. The water tank kit is delivered to you ready to assemble and with a complete set of instructions. Or if you prefer, we have a qualified team of professional installers that can get the job done quickly.
Put 30+ years of making quality corrugated water tanks to work for you!
FEATURES:
- G145 Galvanized Coated Corrugated Steel Walls
- NSF/ANSI 61 Certified for Potable Water Use Tank Liner/Food Grade
- Hot Dip Galvanized Roof Structure & Corrugated Dome Roof
- 2” Outlet with Nickel Coated Metal Ball Valve
- 2” Drain with Nickel Coated Metal Ball Valve
- 6” Overflow with Mosquito Screen and Flap Valve
- Inlet Basket with UV Guard
- Geomat Cushion Layer Tank Liner Protection
- Tank Wall Moisture Barrier
- Foam Roof Seal for Dust and Vermin Protection
- Lockable Access Hatch with Removable Ladder
CONFIGURATION OPTIONS:
- NFPA-”Fire Suppression”
- Well Storage
- Rain Harvesting
More details
TECHNICAL DRAWINGS & GUIDES
- One Clarion 5,000 gallons Water Tank Specs (pdf)
- One Clarion Corrugated Water Tank Flyer (pdf)
- Site Preparation Guide (pdf)
- Sample Installation Guide (pdf)
SPECIFICATIONS
| Diameter | 130" |
| Shell Height | 87" |
| Overall Height | 90" |
| Gross Capacity | 5,000 US Gallons |
| Tank Shell | G145 Galvanized Corrugated Steel Panels, Mechanically Galvanized High Tensile Fasteners |
| Roof Structure | Welded HSS Support Frame with Hot Dipped, Galvanized Coating, Corrugated Steel Cover Sheeting |
| Tank Liner | NSF 61 Certified for Potable Water Use, 20 mil Polyethylene Geomembrane, 700% Elongation at break ASTM D638, 2,000 min HPOIT ASTM D5885 |
| Cushion Layer | Needle-free Non-Woven Polyester Geotextile Underlay |
| Inlet Fitting | 16” Leaf Basket in Roof with UV Guard |
| Outlet Fitting | 2” Bulkhead with NI Coated Ball Valve, 2’ NPT Threaded Connection" |
| Overflow Fitting | 6” ASA Overflow with Internal Vertical Orifice and PVC Overflow Pipework to Ground with Flap Valve and Mosquito Screening |
| Miscellaneous | Foam Roof Seal for Dust and Vermin Protection, Decorative Steel Fascia" |
| Accessories | 20” Lockable Roof Access Hatch, Light Duty Removable Galvanized Steel Ladder |
| Fitting Options: | Fire Protection (NFPA-22), Rain Harvesting, Well Water Storage |
PACK WEIGHT AND DIMENSIONS
Weight: 1,100lbs.
Length: 38"
Width: 91"
Height: 22"
