WylieSKU OC364000010631

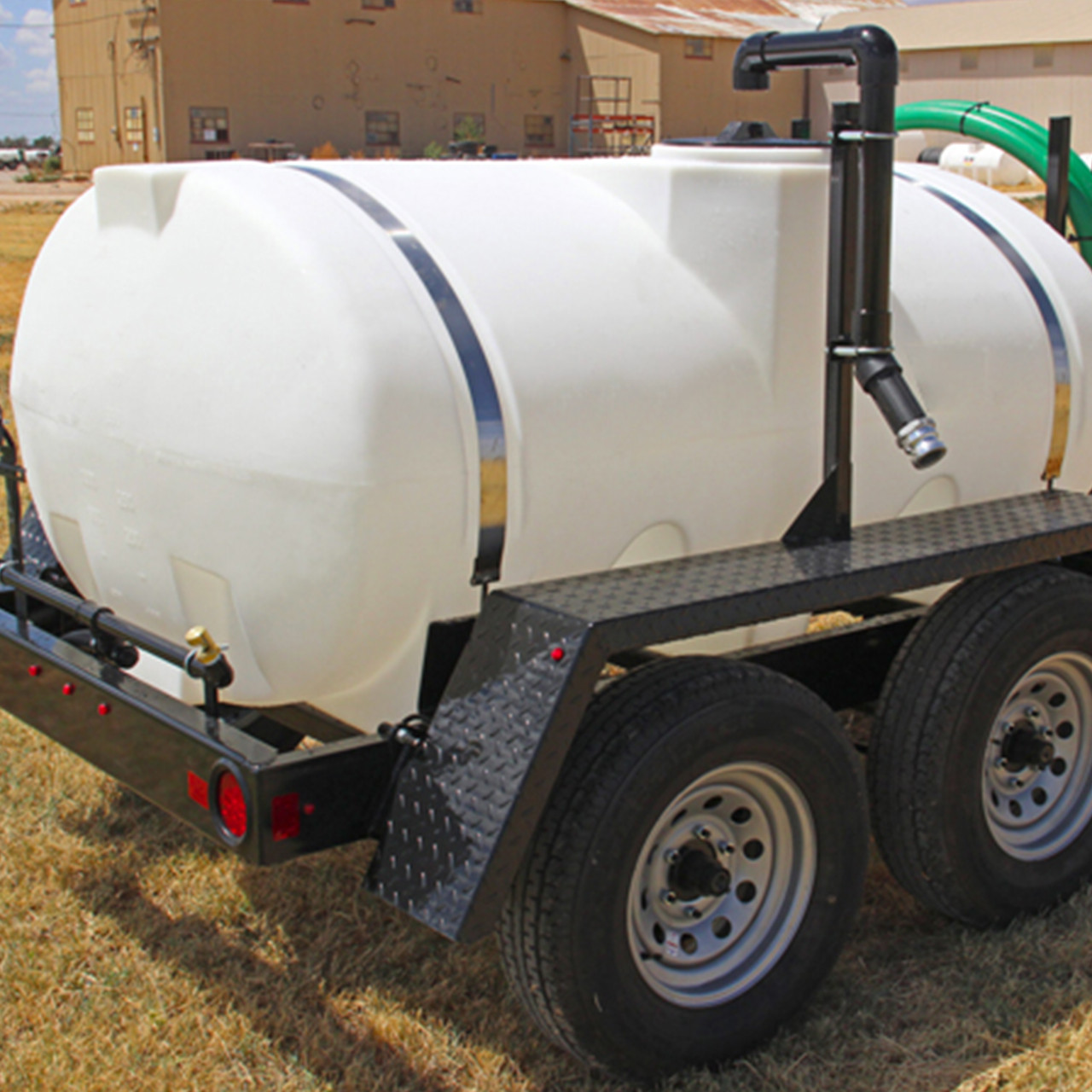

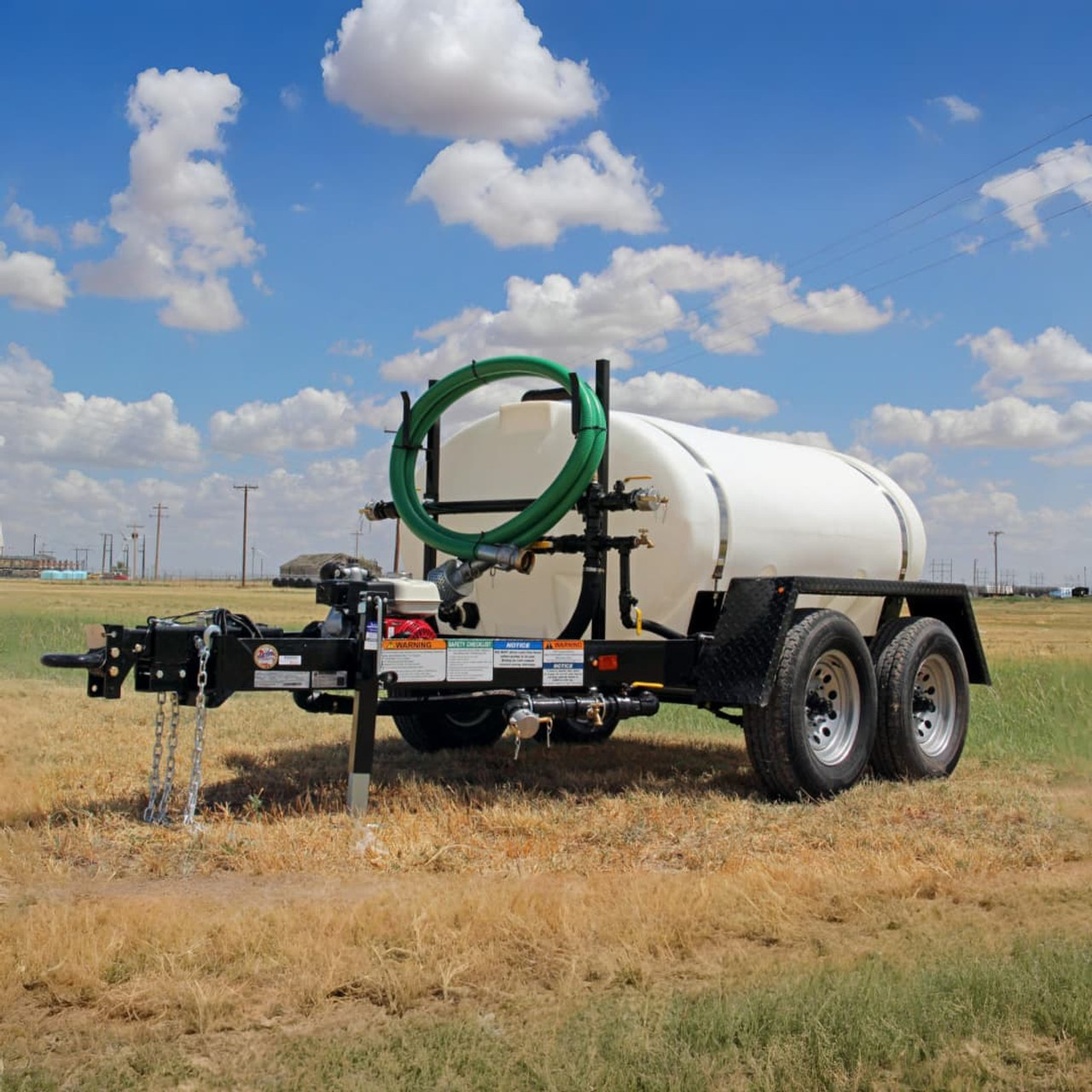

Water Trailer - 550 Gallon Express Water Wagon Surge Brakes, DOT Approved | EXP-550L-S
Price on request
Priced per project. Your quote covers the tank, freight to your site and the estimated lead time.
Images may be inaccurate. See specs below to ensure accuracy.
Specifications
Size
- Capacity
- 550 gal
Build
Ordering
- Brand
- Wylie
- SKU
- OC364000010631
Request a quote
- Tell us about the projectUse the form, or call (863) 261-8388.
- A tank specialist checks the detailsSite, foundation, fittings and delivery access.
- You get a written quoteThe tank, freight to your ZIP and the estimated lead time.
Quoting Water Trailer - 550 Gallon Express Water Wagon Surge Brakes, DOT Approved | EXP-550L-S
All specifications
Size
- Capacity
- 550 gal
Build
Ordering
- Brand
- Wylie
- SKU
- OC364000010631
Description
The 550-gallon Express Water Wagon is the ultimate solution for efficient water delivery across various project sites, whether located along highways or in remote areas. Designed for DOT compliance, this water wagon ensures safe usage on public roads, featuring LED lights and tandem brakes for improved visibility and control. When remote areas require mobile water storage, our 550-gallon pull-type water sprayer trailer is equipped to handle the task effortlessly.
Pump & Plumbing
- With 4 Hp Honda Engine & 2" Tsurumi Pump 140 GPM/ 40 to 60 PSI based on Configuration
- Galvanized Suction & Discharge Manifold
- 20' Of 2" Suction Hose
- 25' Of 1.5" Fire Hose & Nozzle
- 25' Swath Spray Bar W/ Flood Nozzles
- Anti-Siphon Fill.
- Galvanized Rear Spray Bar With Double Nozzles, 8'-25' Swath.
- 3/4" Hose Bib Fittings: Pressure And Gravity Side
Frame & Tank
- 550 Gallon Baffled Polyethylene Elliptical Leg Tank
- Dot Approved Trailer
- Dimensions: 161"L X 79"W X 58"H
- 550 Gallon Polyethylene Drainable Leg Tank- Translucent White
- 7,000 Lb (3500 Each) Tandem Axle Slipper Spring.
- W/ Surge Brakes.
- 6" Channel Iron
- Diamond Tread Fenders
- Tires: 15"Â On E-Z Lube Hubs With 6 Lugs
- Gvwr 6000 Lbs.
- Empty Weight 1800 Lbs.
- Led Brake Lights- Dot Compliant
- 2"Â Ball Hitch
*Forklift Will Be Required to Offload Trailer*
*Customer Responsible For Offloading*
More details
KEY SPECIFICATIONS
- Capacity: 550 gal
- Tank: Baffled, drainable polyethylene elliptical leg tank, translucent white
- Pump / engine: 2 in. Tsurumi pump with 4 HP Honda engine
- Flow / pressure: 140 GPM; 40 to 60 PSI depending on configuration
- Hoses: 20 ft x 2 in. suction hose; 25 ft x 1.5 in. fire hose with nozzle
- Spray bar: Galvanized rear spray bar, double nozzles, 8-25 ft swath
- Plumbing: Galvanized suction & discharge manifold; anti-siphon fill; 3/4 in. hose bibs (pressure and gravity side)
- Overall dimensions: 161 in. L x 79 in. W x 58 in. H
- Empty weight: 1,800 lb
- GVWR: 6,000 lb
- Axles: Tandem slipper spring, 7,000 lb total (3,500 lb each)
- Brakes: Surge
- Frame: 6 in. channel iron; diamond tread fenders
- Tires / hubs: 15 in. tires on E-Z Lube hubs, 6 lug
- Tire size: ST225/75/R15
- Hitch: 2 in. ball
- Lights / DOT: LED brake lights; DOT compliant trailer
- Offloading: Forklift required; customer responsible for offloading
