UltraTech Stake Wall Containment Berm

Product Description

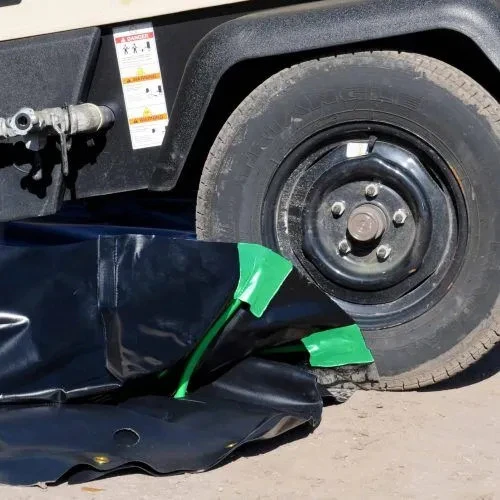

The UltraTech Stake Wall Containment Berm holds its 12" sidewalls up with flexible stakes that have a built-in living hinge, so drums and trucks can roll over the walls and the walls spring back upright on their own. Unfold it and the sidewalls rise into position: no set-up required.

Choose from 24 standard sizes, from 4' x 6' to 15' x 66', in Copolymer 2000 or XR-5. Containment capacity runs from 179 to 7,405 gallons depending on size.

SIZE OPTIONS

Copolymer 2000

• 4' x 6' x 1' — 179 gal — 37 lb — Part No.: 8208
• 6' x 6' x 1' — 269 gal — 46 lb — Part No.: 8209
• 10' x 10' x 1' — 748 gal — 87 lb — Part No.: 8210
• 10' x 20' x 1' — 1,496 gal — 150 lb — Part No.: 8220
• 10' x 30' x 1' — 2,244 gal — 208 lb — Part No.: 8221
• 10' x 40' x 1' — 2,992 gal — 266 lb — Part No.: 8222
• 10' x 50' x 1' — 3,740 gal — 325 lb — Part No.: 8223
• 12' x 12' x 1' — 1,077 gal — 113 lb — Part No.: 8224
• 12' x 20' x 1' — 1,795 gal — 162 lb — Part No.: 8225
• 12' x 30' x 1' — 2,692 gal — 223 lb — Part No.: 8226
• 12' x 40' x 1' — 3,590 gal — 284 lb — Part No.: 8227
• 12' x 50' x 1' — 4,488 gal — 345 lb — Part No.: 8228
• 12' x 60' x 1' — 5,385 gal — 406 lb — Part No.: 8229
• 15' x 15' x 1' — 1,683 gal — 151 lb — Part No.: 8230
• 15' x 20' x 1' — 2,244 gal — 184 lb — Part No.: 8231
• 15' x 30' x 1' — 3,366 gal — 250 lb — Part No.: 8232
• 15' x 40' x 1' — 4,488 gal — 317 lb — Part No.: 8233
• 15' x 50' x 1' — 5,610 gal — 363 lb — Part No.: 8211
• 15' x 66' x 1' — 7,405 gal — 464 lb — Part No.: 8212

XR-5

• 4' x 6' x 1' — Part No.: 8308
• 6' x 6' x 1' — Part No.: 8309
• 10' x 10' x 1' — Part No.: 8310
• 15' x 50' x 1' — Part No.: 8337
• 15' x 66' x 1' — Part No.: 8332

FEATURES

• Easily folds for transport
• No set-up required: unfold and the sidewalls spring into their vertical position
• Vertical sidewall supports every 12", each with a living hinge at its base, so the walls collapse in either direction and spring back automatically
• Containment for drums, frac tanks, equipment and vehicles
• Copolymer 2000 or XR-5
• Helps comply with EPA 40 CFR 264.175 and SPCC

MATERIAL GUIDE

• Copolymer 2000: 28 oz/yd² finished weight, 30 mil nominal; service range -25°F to 160°F; puncture resistance 50 lb
• XR-5: 30 oz/yd², 30 mil minimum; service range -30°F to 160°F; puncture resistance 250 lb minimum

Choose the fabric by chemical compatibility first: suitability depends on your specific chemical, its concentration and its temperature, and is the buyer's responsibility to verify before ordering.

CHEMICAL COMPATIBILITY RESOURCES

• Chemical Compatibility: XR-5, Copolymer 2000 and PVC (PDF)

Compatibility data is published by the manufacturer as general guidance only. Contact us with your chemical, concentration and temperature before you order.
