UltraTech Sidewinder Cable Protector

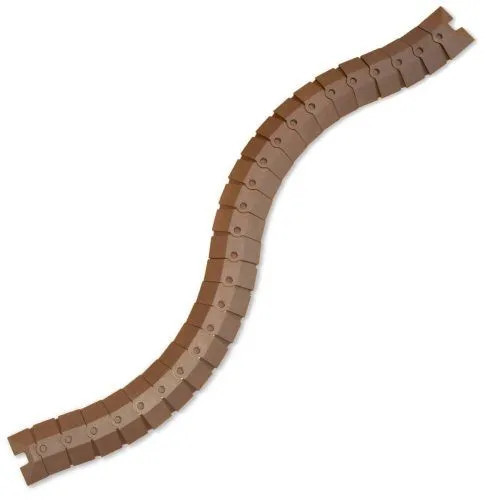

The UltraTech Sidewinder protects cables run across a floor. Its sections articulate left and right, so the system turns corners and follows the layout of the room while it keeps the cables covered and gives pedestrians trip protection. Cables can stay in the system for portability or be left in place indefinitely.

SIZE OPTIONS

• Small — System with end caps — Black & yellow — 1.5 lb — Part No.: 1800
• Small — System with end caps — Black — 1.5 lb — Part No.: 1802
• Small — System with end caps — Brown — 1.5 lb — Part No.: 1804
• Small — System with end caps — Gray — 1.5 lb — Part No.: 1806
• Small — 24' bulk box system — Black & yellow — 10 lb — Part No.: 1820
• Small — Extension — Black & yellow — 0.5 lb — Part No.: 1801
• Small — Extension — Black — 0.5 lb — Part No.: 1803
• Small — Extension — Brown — 0.5 lb — Part No.: 1805
• Small — Extension — Gray — 0.5 lb — Part No.: 1807
• Medium — System with end caps — Black & yellow — 4.7 lb — Part No.: 1830
• Medium — System with end caps — Black — 4.7 lb — Part No.: 1832
• Medium — Extension — Black & yellow — 1.7 lb — Part No.: 1831
• Medium — Extension — Black — 1.7 lb — Part No.: 1833
• Large — System with end caps — Black & yellow — 9 lb — Part No.: 1840
• Large — System with end caps — Black — 9 lb — Part No.: 1842
• Large — Extension — Black & yellow — 3.2 lb — Part No.: 1841
• Large — Extension — Black — 3.2 lb — Part No.: 1843

FEATURES

• Articulating pieces offer flexible design: curves, corners and s-curves are easily made while maintaining a completely flat profile
• Modular design makes it easy to reconfigure, repair and replace targeted segments, even while the cable remains connected
• Simple "snap in" assembly - no tools or cutting required
• Fully customizable length
• Black & yellow color provides additional "safety tape" visual warning

TECHNICAL DRAWINGS & GUIDES

• Sidewinder Specification: Small (PDF)
• Sidewinder Specification: Medium (PDF)
• Sidewinder Specification: Large (PDF)
• Sidewinder Instructions (PDF)

KEY SPECIFICATIONS

• Product Type: Cable Protector
• Model: Ultra-Sidewinder Cable Protection System®
• Channel Opening: Small 3/4" W x 3/8" H (one extension cord); Medium 3" W x 3/4" H (up to 18 cords); Large 3" W x 1.5" H (up to 32 cords)
• Weight Capacity: 2,000 lb/in² (small); 260 lb/in² (medium and large)
• Product Weight: 0.5 to 10 lb, by size
• System Length: Small 39.5"; Medium 33"; Large 34"; extensions 13.1" to 14.1"
• ADA: Small size is ADA compliant; ramps make the medium and large sizes compliant
• Compliance: Helps comply with OSHA wiring design and protection, 29 CFR 1910.304 and 1910.305
• Country of Origin: USA
• Manufacturer: UltraTech International, Inc.
• Manufacturer Part Number: 1800 / 1802 / 1804 / 1806 / 1820 / 1801 / 1803 / 1805 / 1807 / 1830 / 1832 / 1831 / 1833 / 1840 / 1842 / 1841 / 1843

SHIPPING INFORMATION

• Freight Class: 55 to 92.5, by size
• Lead Time: most orders ship from UltraTech within 5 business days

WARRANTY TERMS

UltraTech International warrants this product to be free from defects in materials and workmanship on delivery, freight damage excepted. Any defect must be reported within five business days of receipt; UltraTech will repair or replace the product at its discretion.
