UltraTech Modular IBC Spill Pallet

Product Description

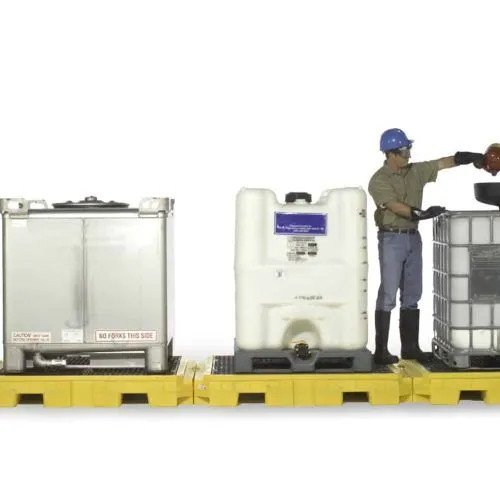

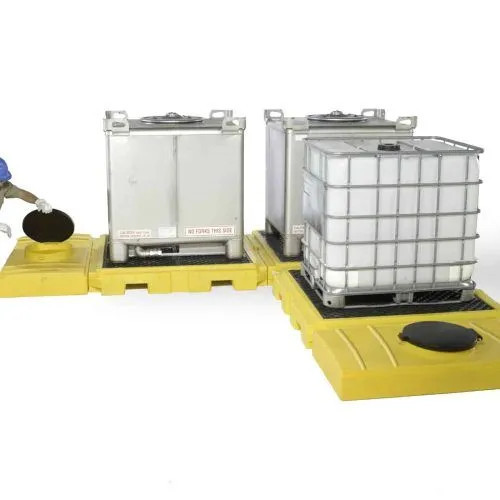

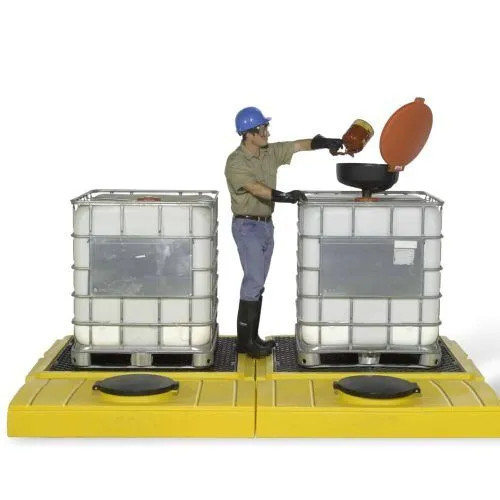

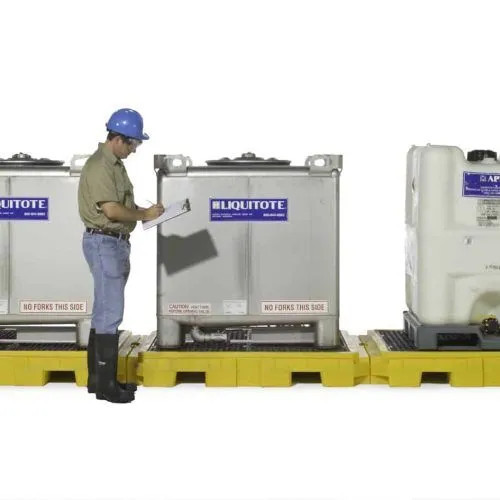

The UltraTech Modular IBC Spill Pallet connects low-profile spill pallets with flow-through bulkhead fittings, so two to five IBC tanks share their containment in less floor space. Indoor and outdoor models are available.

OPTIONS

• Indoor — 2 tanks — 280 gal — 310 lb — Part No.: 1125
• Indoor — 3 tanks — 355 gal — 435 lb — Part No.: 1126
• Indoor — 4 tanks — 365 gal — 531 lb — Part No.: 1127
• Indoor — 5 tanks — 375 gal — 625 lb — Part No.: 1128
• Outdoor — 2 tanks — 280 gal — 881 lb — Part No.: 1165
• Outdoor — 3 tanks — 355 gal — 1258 lb — Part No.: 1166
• Outdoor — 4 tanks — 365 gal — 1603 lb — Part No.: 1167
• Outdoor — 5 tanks — 375 gal — 1948 lb — Part No.: 1168

FEATURES

• Each pallet contains 75 gallons and measures 62" x 62" x 8.75"
• Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lbs. UDL
• Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next
• To increase containment capacity, a 65-gallon capacity expansion tank is available
• "Flow-through" bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and expansion tanks together

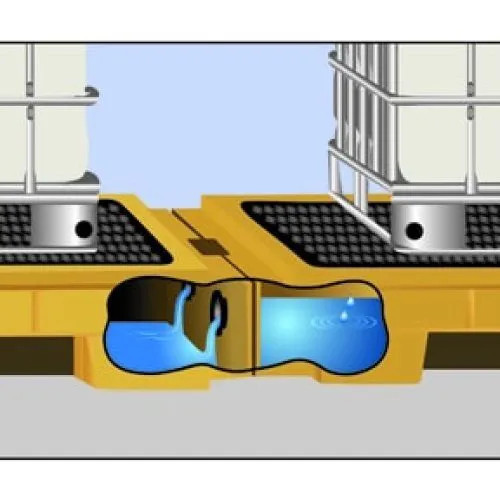

• Bulkhead fittings allow spills to be channeled throughout the containment system, thereby "borrowing" containment capacity from adjacent spill pallets and expansion tanks
• Constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents, and oils

CHEMICAL COMPATIBILITY RESOURCES

• Chemical Compatibility: Molded Polyethylene (Rev. 05.06.25) (PDF)

Compatibility data is published by the manufacturer as general guidance only. Contact us with your chemical, concentration and temperature before you order.
