UltraTech Containment Wall M2 Spill Containment System

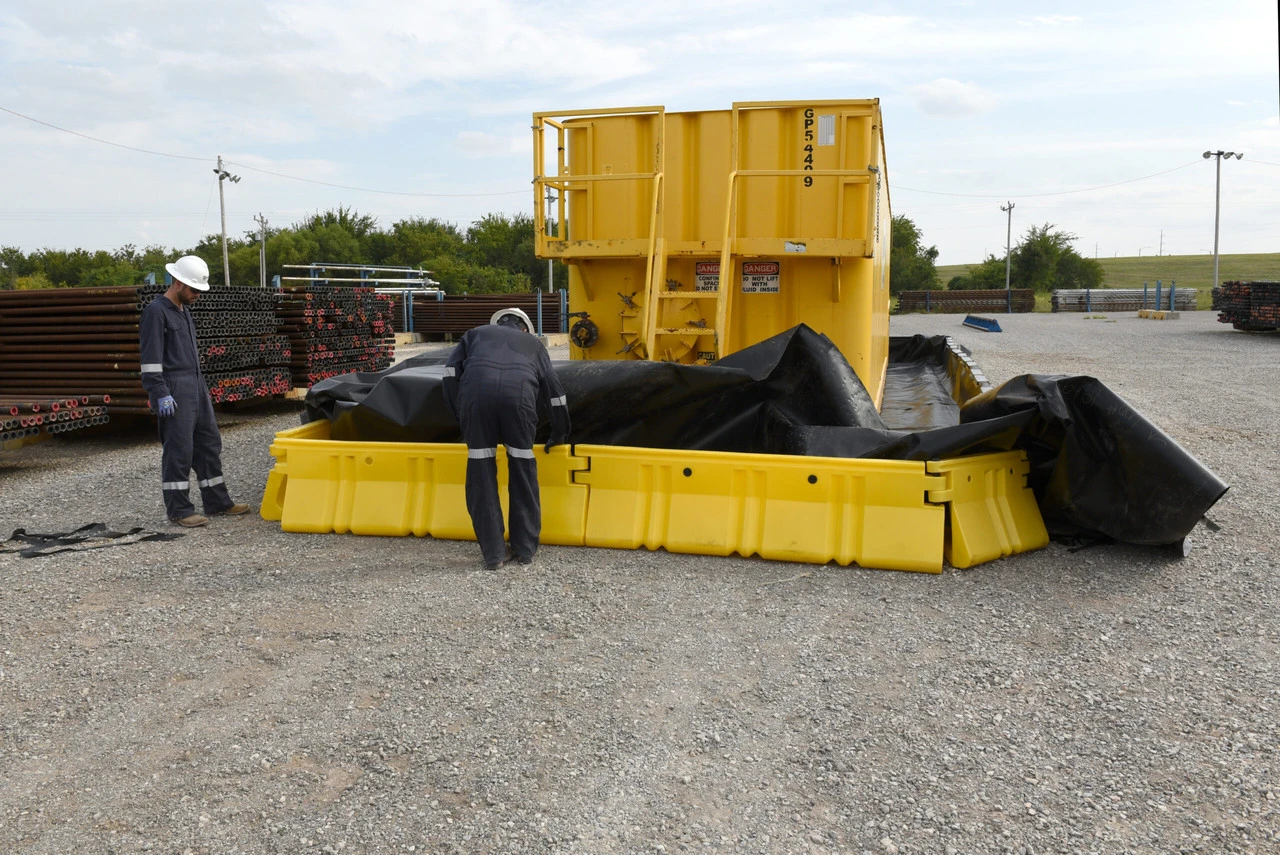

The UltraTech Containment Wall M2 is a hard-wall system of modular straight and corner sections that assemble into almost any size or shape of spill containment area. With 1, 2 or 3 ft walls it contains very large spills from very large equipment, and it is not secured to the ground, so it works on parking lots, sand, rocky, muddy or frozen soil and concrete.

OPTIONS

• Complete system (20 straight + 4 corner sections) — 1 ft — 6,211 gal — 728 lb — Part No.: 8898
• Complete system (20 straight + 4 corner sections) — 2 ft — 12,421 gal — 1376 lb — Part No.: 8882
• Complete system (20 straight + 4 corner sections) — 3 ft — 18,632 gal — 3007.5 lb — Part No.: 8885
• Straight section — 1 ft — 34 lb — Part No.: 8896
• Straight section — 2 ft — 65 lb — Part No.: 8880
• Straight section — 3 ft — 76 lb — Part No.: 8883
• Corner section — 1 ft — 12 lb — Part No.: 8897
• Corner section — 2 ft — 19 lb — Part No.: 8881
• Corner section — 3 ft — 25 lb — Part No.: 8884
• System liner, 30 mil textured PE — 1 ft — Part No.: 8887
• System liner, 30 mil textured PE — 2 ft — Part No.: 8886
• System liner, 30 mil textured PE — 3 ft — Part No.: 8888

FEATURES

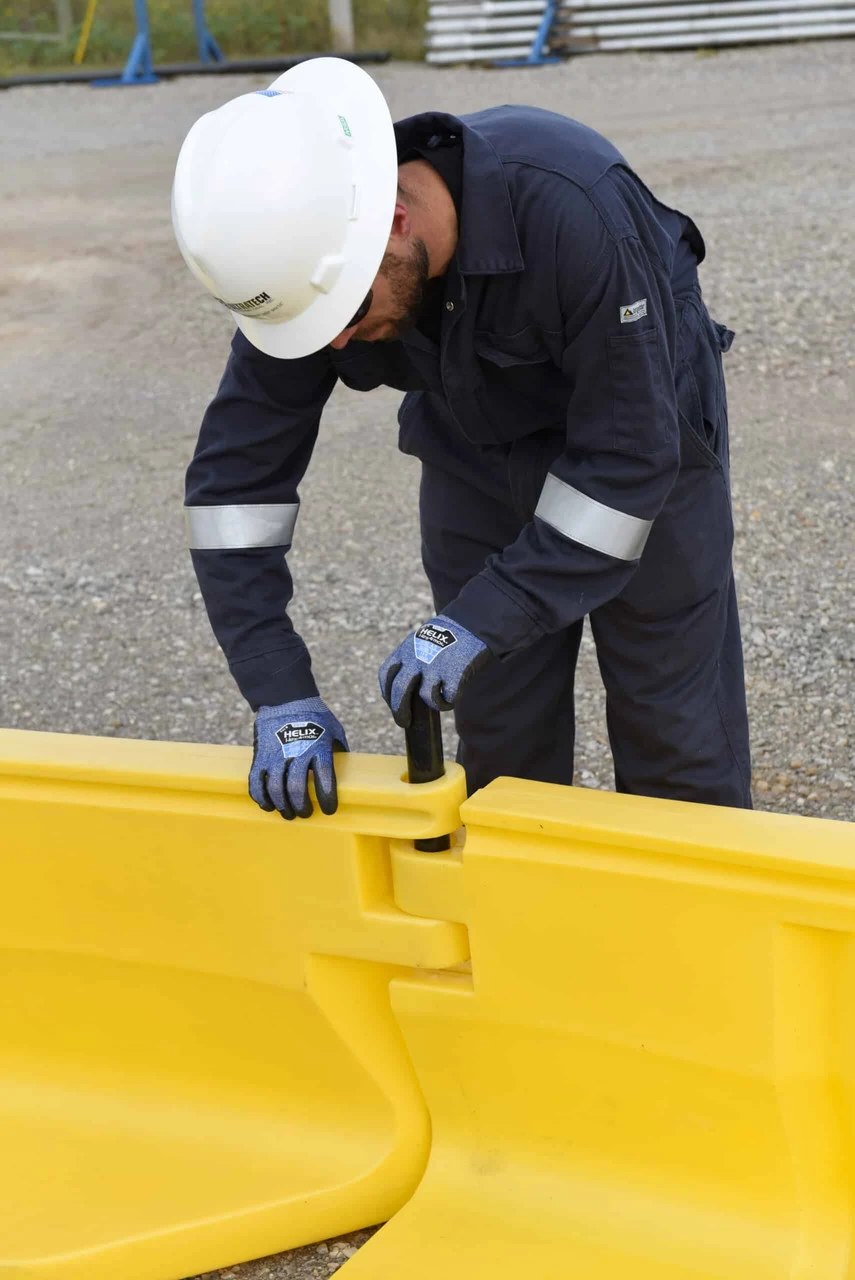

• Modular wall sections and corners assemble easily to form almost any size or shape of spill containment area
• Creates large, semi-permanent containment areas with much more gallon capacity than shorter walled systems
• Not secured to the substrate: use on parking lots, sand, rocky, muddy or frozen soil, or concrete
• Versatile system can be easily disassembled for reuse at future sites

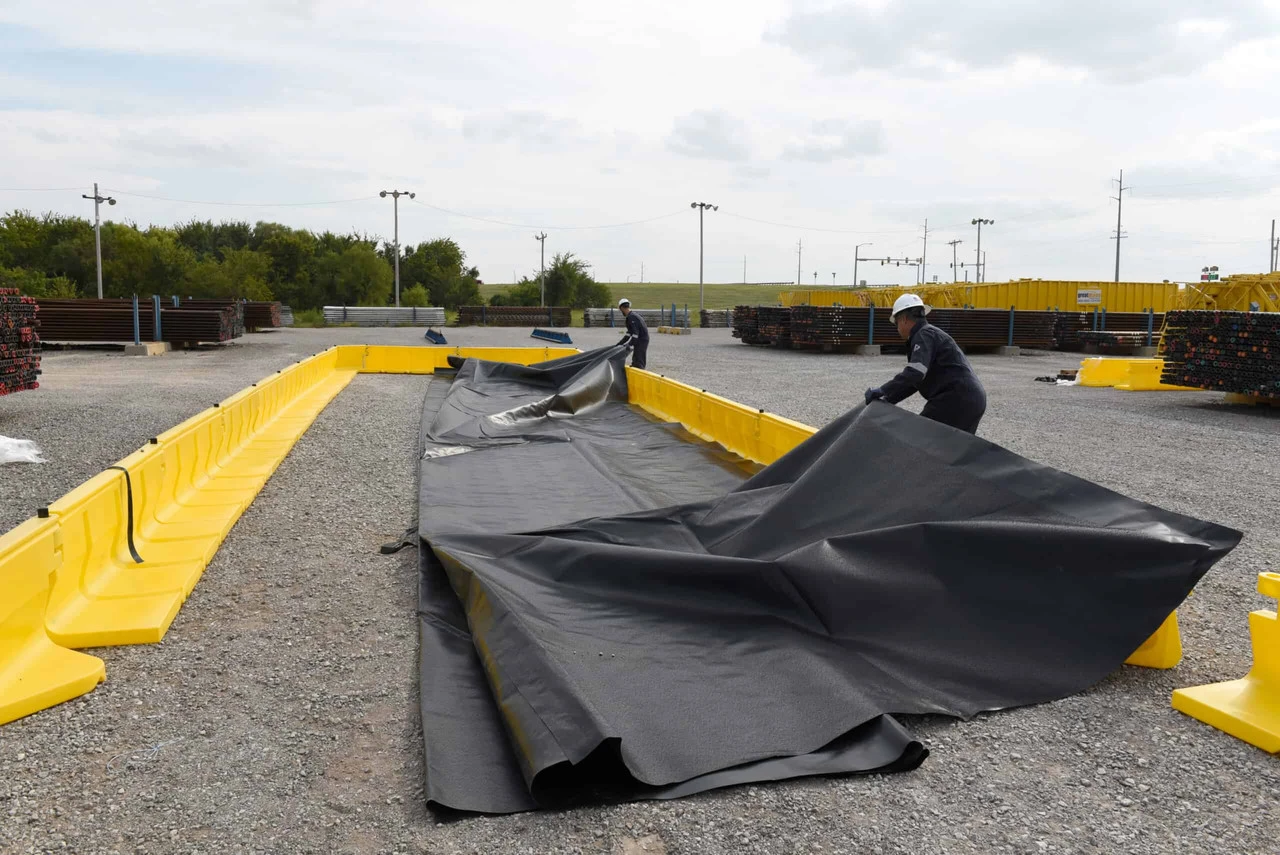

• Heavy-duty, 30 mil textured polyethylene liner provides a rugged, impermeable barrier to capture leaks and spills (sold separately; the five-year warranty does not apply to liners)

CHEMICAL COMPATIBILITY RESOURCES

• Chemical Compatibility: 30 mil Textured Liner (PDF)

Compatibility data is published by the manufacturer as general guidance only. Contact us with your chemical, concentration and temperature before you order.

TECHNICAL DRAWINGS & GUIDES

• Containment Wall M2 Specifications (PDF)
• Containment Wall M2 Assembly Instructions (Rev. 07.10.25) (PDF)
• Containment Wall Liner Specifications (Rev. 04.04.25) (PDF)
• Containment Wall Liner Subgrade Preparation (Rev. 07.10.25) (PDF)
• Chemical Compatibility: 30 mil Textured Liner (PDF)

KEY SPECIFICATIONS

• Product Type: Containment Wall System
• Model: Ultra-Containment Wall® M2
• Wall Heights: 1 ft, 2 ft or 3 ft
• Containment Capacity: 6,211 to 18,632 gallons, by size
• Product Weight: 12 to 3,007.5 lb, by size
• Straight Section: 81.25" long assembled; includes 2 liner clips and 1 connector pin
• Corner Section: 36.8" x 36.8" (1 ft) or 36.8" x 19" (2 and 3 ft); includes 1 liner clip and 1 connector pin
• Complete System: 20 straight + 4 corner sections; internal usable dims 14.8' x 55.7' (1 ft) or 14.5' x 55.3' (2 and 3 ft); liner not included
• System Liner: 30 mil textured polyethylene, 34' x 64', 34' x 66' or 34' x 75' by wall height
• Compliance: Helps meet SPCC and EPA 40 CFR 264.175
• Country of Origin: USA
• Manufacturer: UltraTech International, Inc.
• Manufacturer Part Number: 8898 / 8882 / 8885 / 8896 / 8880 / 8883 / 8897 / 8881 / 8884 / 8887 / 8886 / 8888

SHIPPING INFORMATION

• Freight Class: 175 to 300, by size
• Lead Time: most orders ship from UltraTech within 5 business days

WARRANTY TERMS

Part Nos. 8898, 8882, 8885, 8896, 8880, 8883, 8897, 8881, 8884: UltraTech International warrants this product for five years from the date of purchase: if it proves defective in materials or workmanship during normal use, UltraTech will arrange its repair or replacement. Contact us to start a claim. The warranty does not cover misuse, including use with liquids the manufacturer does not recommend, alteration, or severe treatment such as excessive weight or dropping.

Part Nos. 8887, 8886, 8888: UltraTech International warrants this product to be free from defects in materials and workmanship on delivery, freight damage excepted. Any defect must be reported within five business days of receipt; UltraTech will repair or replace the product at its discretion.
