UltraTech Compact Containment Berm

Product Description

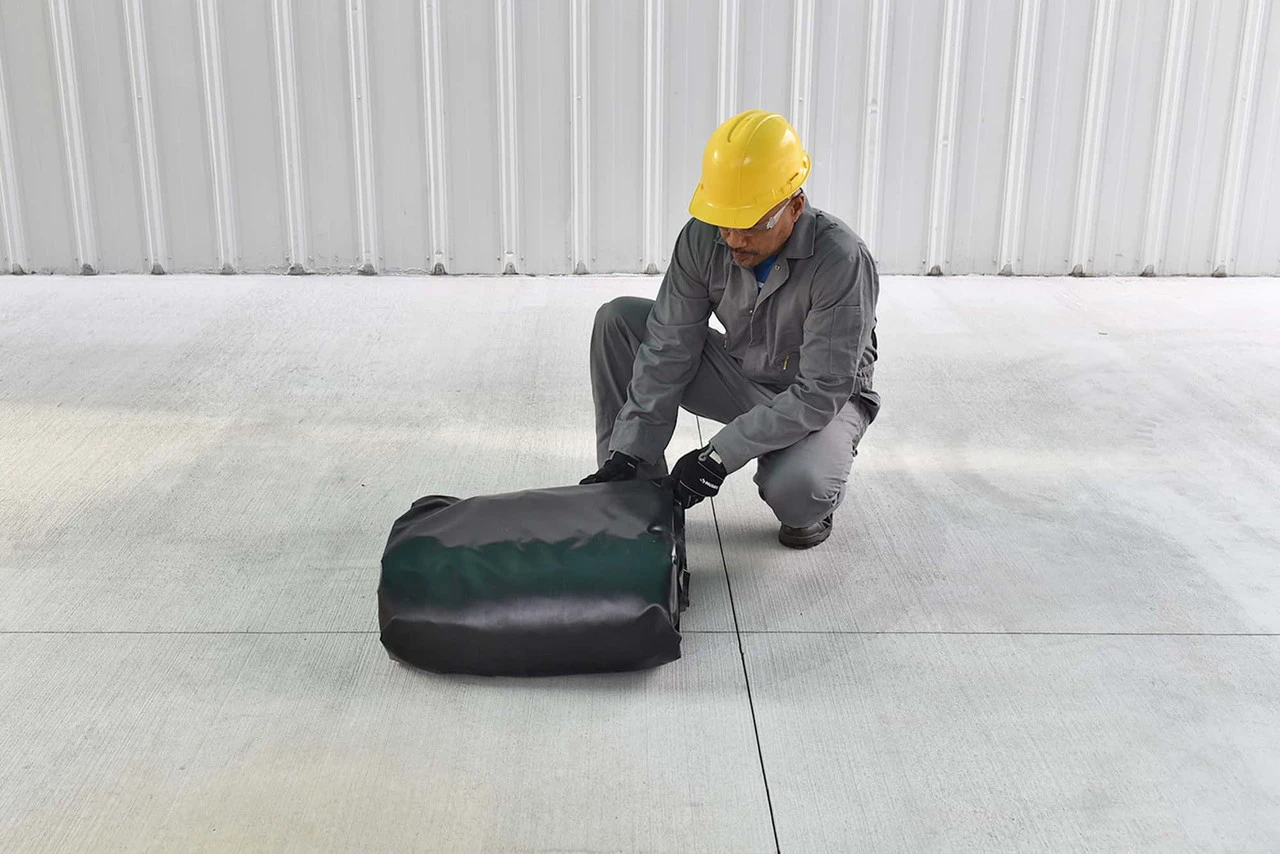

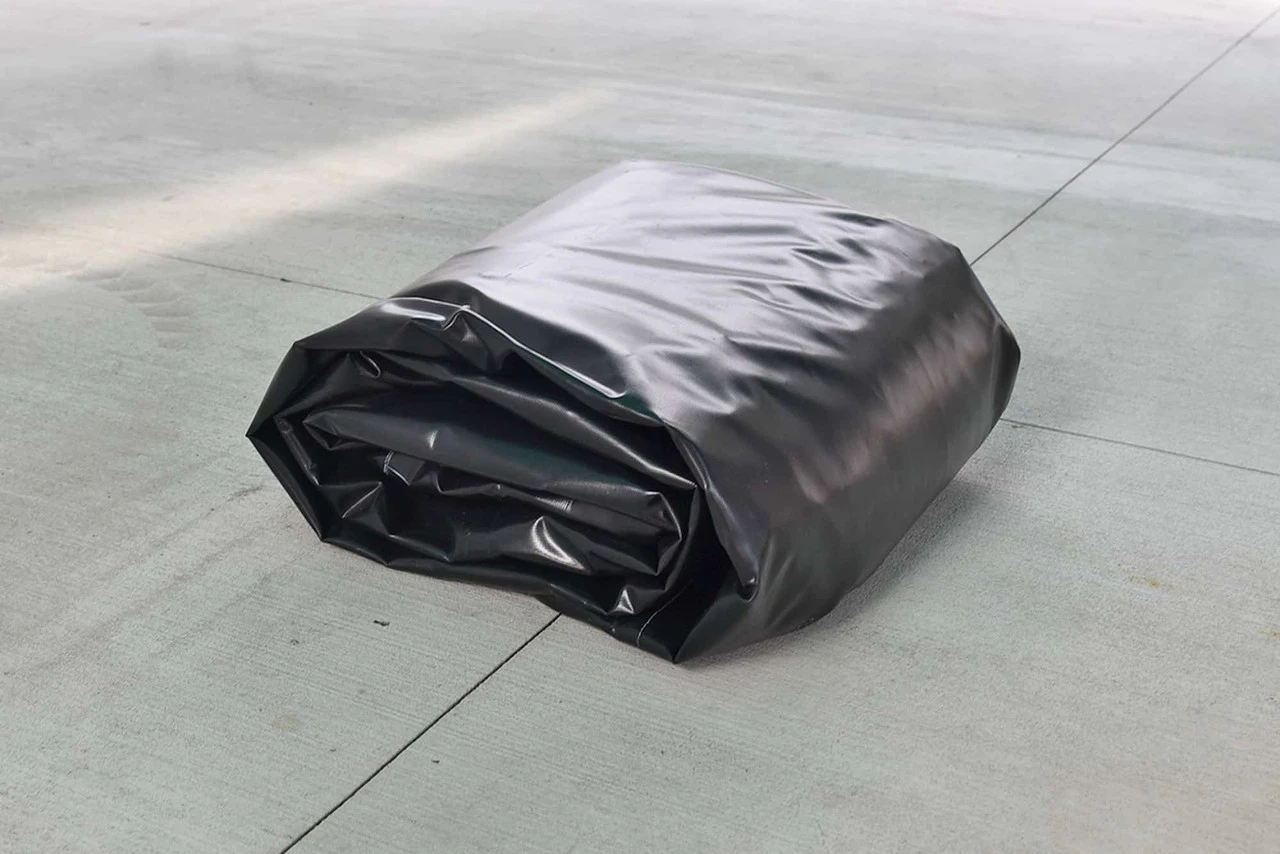

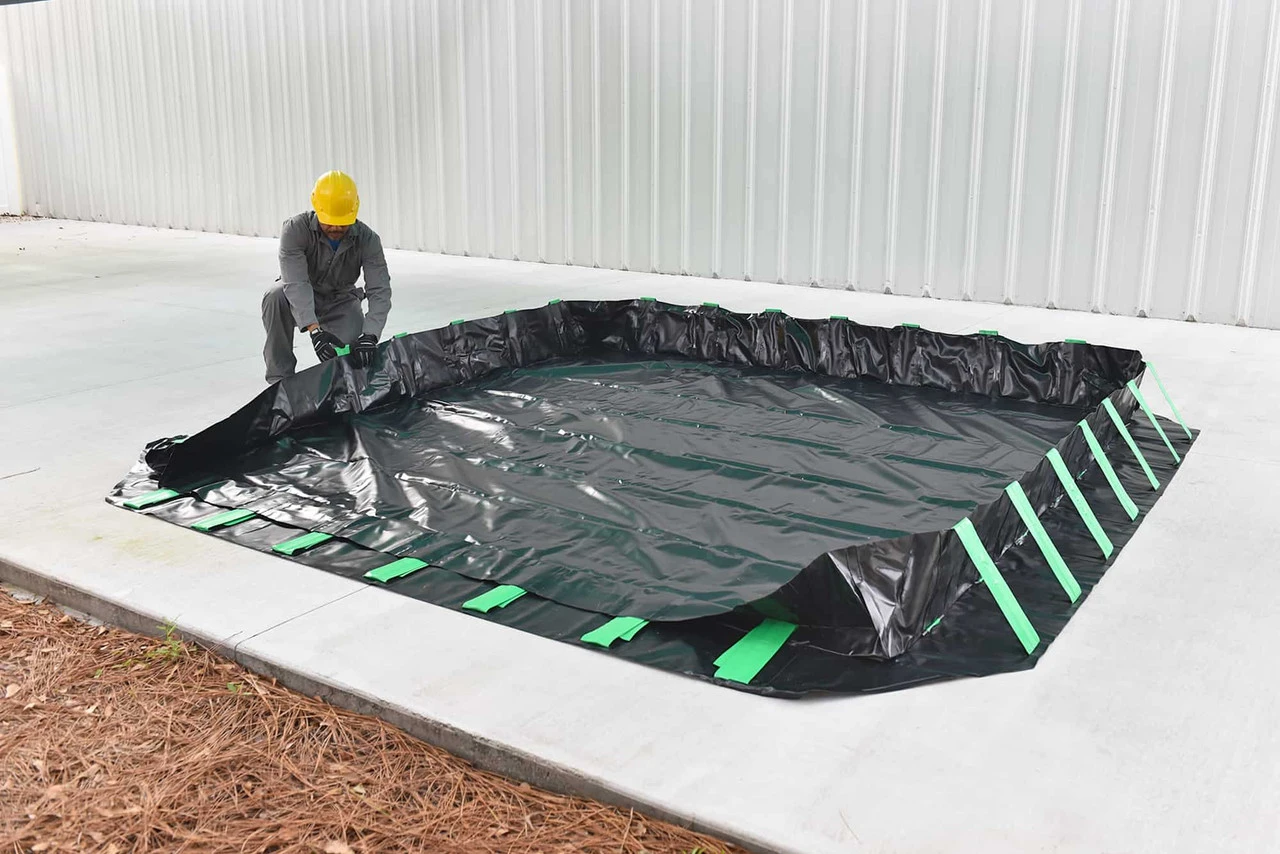

The UltraTech Compact Containment Berm folds into a tight package that stores onboard trucks and hazmat response vehicles, then sets up quickly as heavy-duty containment for tanker trucks, drums, generators, IBCs, frac tanks and other equipment. Its 12" sidewalls lower for drive-in and drive-out and can be driven over without damage.

Choose from 24 standard sizes, from 4' x 6' to 15' x 66', in 22 oz PVC or Copolymer 2000. Containment capacity runs from 179 to 7,405 gallons depending on size.

SIZE OPTIONS

22 oz PVC

• 6' x 6' x 1' — 269 gal — 36 lb — Part No.: 8693
• 10' x 10' x 1' — 749 gal — 68 lb — Part No.: 8694
• 12' x 40' x 1' — 3,591 gal — 190 lb — Part No.: 8695
• 14' x 54' x 1' — 5,655 gal — 270 lb — Part No.: 8696
• 15' x 66' x 1' — 7,046 gal — 442 lb — Part No.: 8697

Copolymer 2000

• 4' x 6' x 1' — 179 gal — 34 lb — Part No.: 8609
• 6' x 6' x 1' — 269 gal — 39 lb — Part No.: 8610
• 10' x 10' x 1' — 748 gal — 72 lb — Part No.: 8611
• 10' x 20' x 1' — 1,496 gal — 146 lb — Part No.: 8680
• 10' x 30' x 1' — 2,244 gal — 201 lb — Part No.: 8681
• 10' x 40' x 1' — 2,992 gal — 257 lb — Part No.: 8682
• 10' x 50' x 1' — 3,740 gal — 312 lb — Part No.: 8683
• 12' x 12' x 1' — 1,077 gal — 111 lb — Part No.: 8684
• 12' x 20' x 1' — 1,795 gal — 158 lb — Part No.: 8685
• 12' x 30' x 1' — 2,692 gal — 216 lb — Part No.: 8686
• 12' x 40' x 1' — 3,590 gal — 274 lb — Part No.: 8687
• 12' x 50' x 1' — 4,488 gal — 333 lb — Part No.: 8688
• 12' x 60' x 1' — 5,385 gal — 335 lb — Part No.: 8612
• 15' x 15' x 1' — 1,683 gal — 147 lb — Part No.: 8689
• 15' x 20' x 1' — 2,244 gal — 179 lb — Part No.: 8690
• 15' x 30' x 1' — 3,366 gal — 243 lb — Part No.: 8691
• 15' x 40' x 1' — 4,488 gal — 306 lb — Part No.: 8692
• 15' x 50' x 1' — 5,610 gal — 317 lb — Part No.: 8613
• 15' x 66' x 1' — 7,405 gal — 404 lb — Part No.: 8614

FEATURES

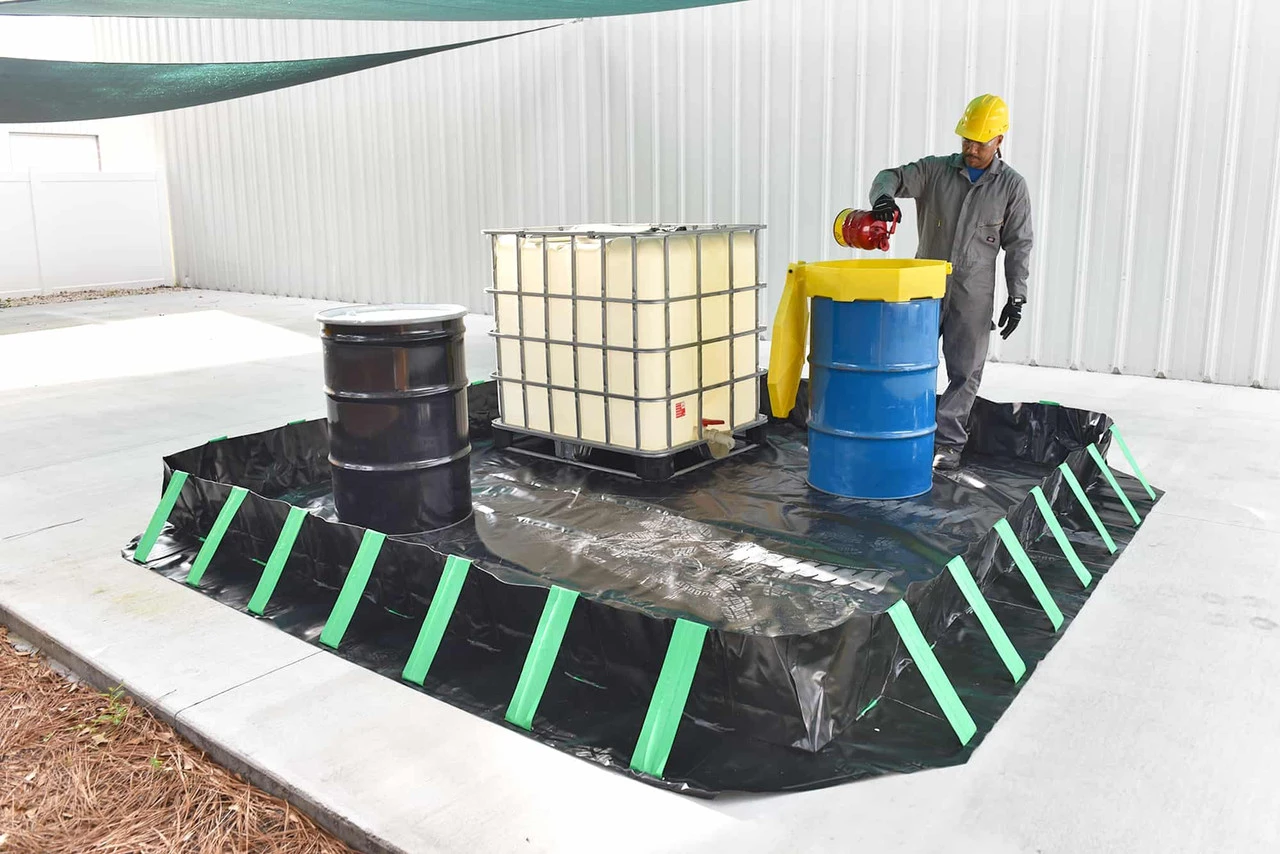

• Protects heavy equipment from spills during filling, discharging, cleaning and maintenance
• Compact, lightweight, portable design with no inflation required

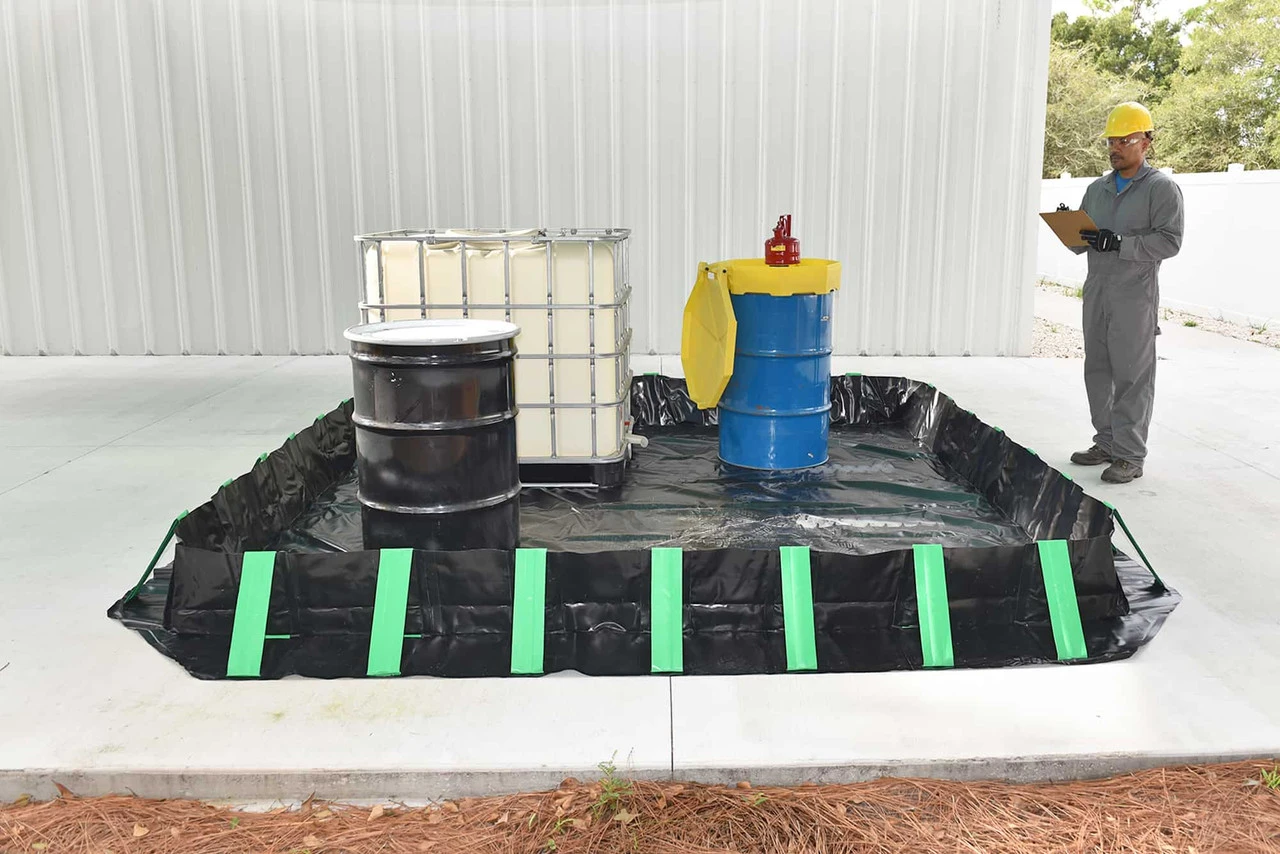

• Smaller sizes give total containment of drums, tanks, generators, compressors and other leak-prone equipment

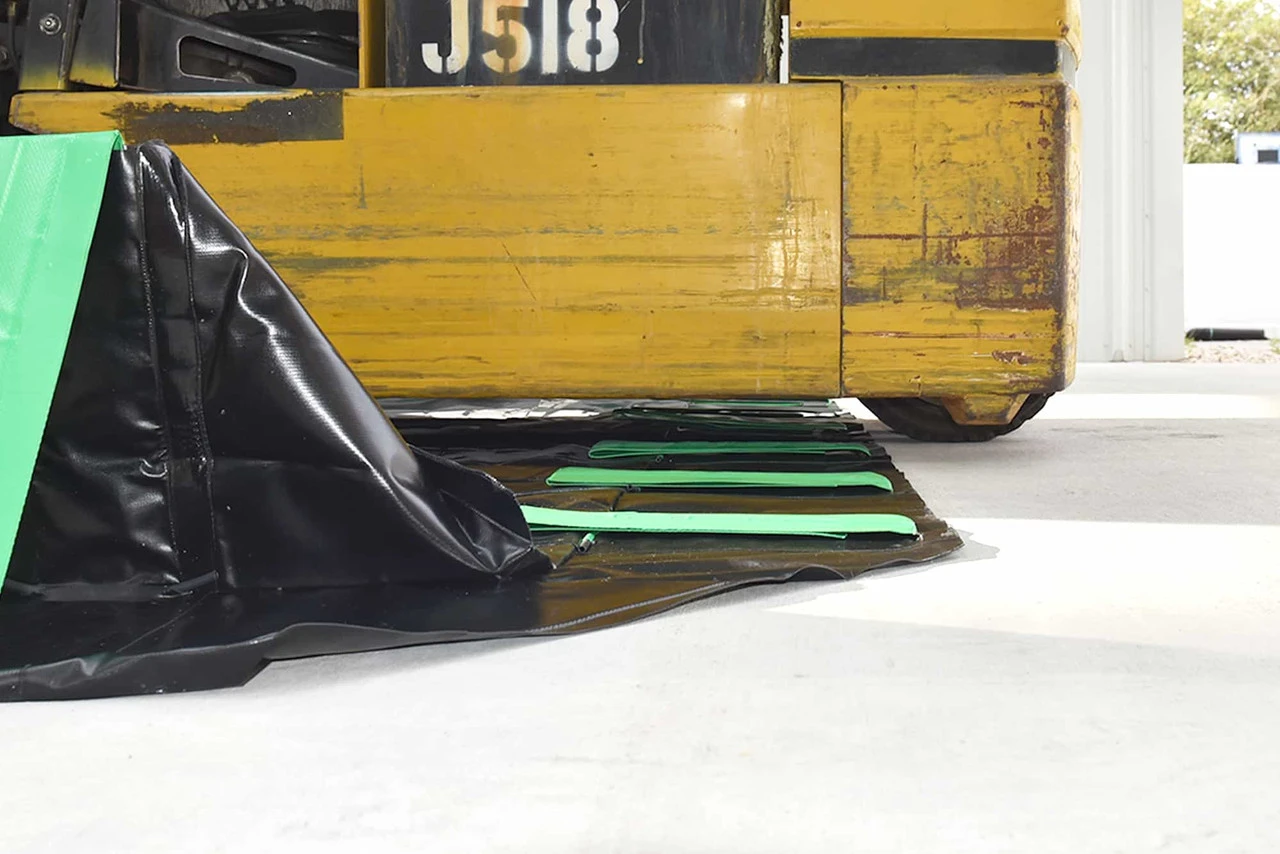

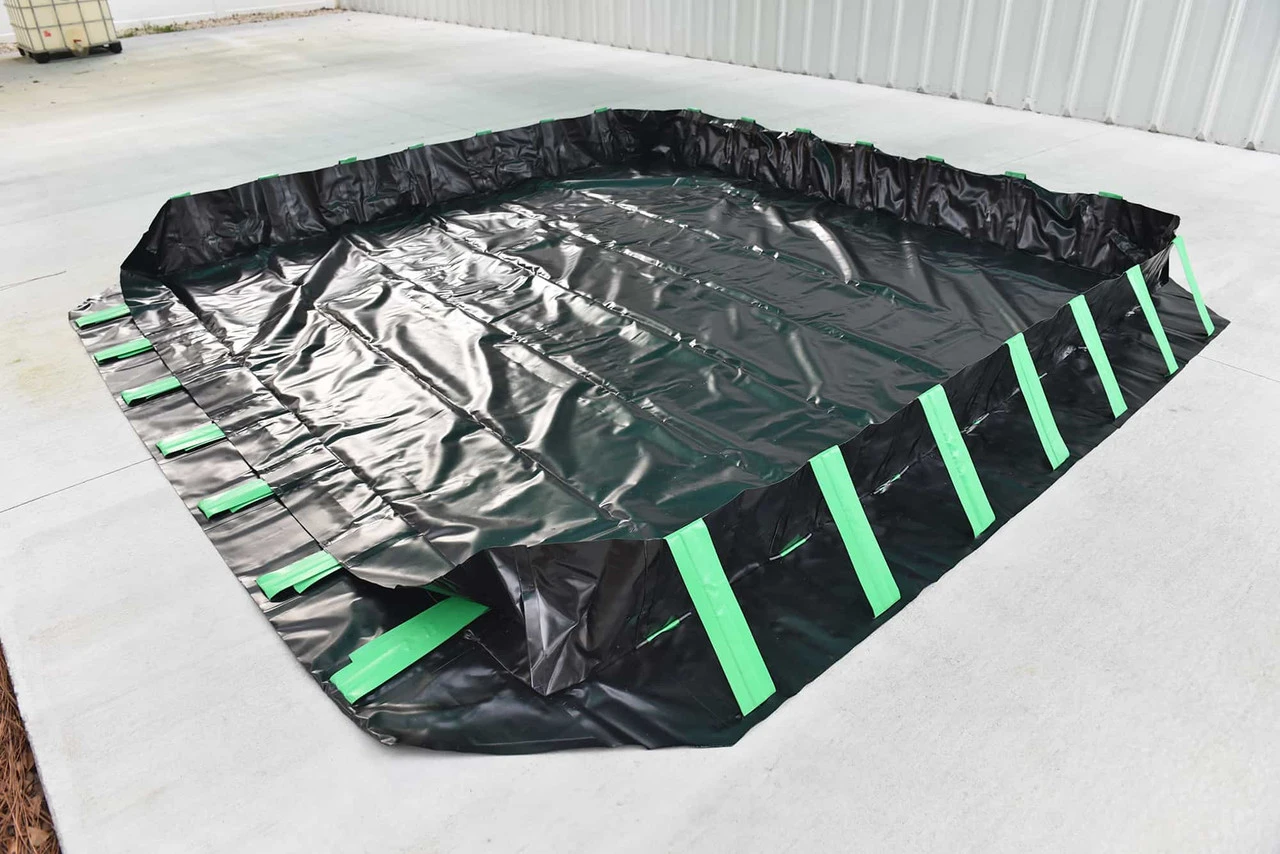

• Sidewalls lower quickly to allow drive-in / drive-out
• Copolymer 2000 or 22 oz (24 mil) PVC withstands industrial and construction applications
• Helps meet SPCC and EPA spill containment regulations

MATERIAL GUIDE

• 22 oz PVC: 22 oz/yd², 24 mil nominal; service range -30°F to 145°F; puncture resistance 91 lb
• Copolymer 2000: 28 oz/yd² finished weight, 30 mil nominal; service range -25°F to 160°F; puncture resistance 50 lb

Choose the fabric by chemical compatibility first: suitability depends on your specific chemical, its concentration and its temperature, and is the buyer's responsibility to verify before ordering.

CHEMICAL COMPATIBILITY RESOURCES

• Chemical Compatibility: XR-5, Copolymer 2000 and PVC (PDF)

Compatibility data is published by the manufacturer as general guidance only. Contact us with your chemical, concentration and temperature before you order.
