Product Description

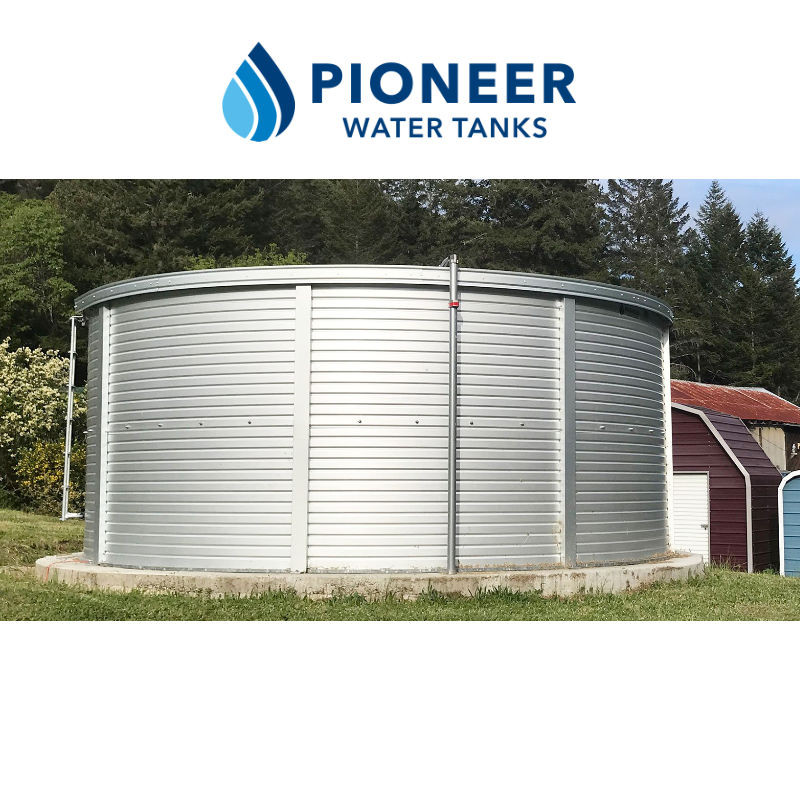

The Pioneer XLE 23/2 is an engineered steel water storage tank for permitted and specified projects, with a nominal capacity of 29,093 US gallons in a 26' 4" diameter footprint. The XLE engineered series is built for applications such as fire protection storage, drinking water storage, and projects with seismic or wind engineering requirements.
XLE tanks use the same ZINCALUME® steel and patented PIONEER V-LOCK® wall system as the full Pioneer range, supplied with engineering documentation to suit permitted projects. Pioneer fire protection tanks are designed to NFPA 22 and NFPA 1142 standards, and design documentation and fire specific accessories such as FDC connections and anti vortex fittings are available. Our team will confirm the engineering package, fittings, and certification requirements for your project when you request a quote.
Water is stored inside the AQUALINER® Fresh tank liner. The AQUALINER® Fresh tank liner utilized within Pioneer Water Tanks is NSF 61 certified for drinking water storage. For potable applications, confirm the rating for your application with our team.
One Clarion is a Pioneer Water Tanks Authorized Dealer. Pricing is provided by custom quote based on your project, engineering requirements, fittings, and freight.
Applications
Configured at quote time for your application and fittings. Common applications include:
- Fire protection: permitted fire storage designed to NFPA 22 and NFPA 1142, with FDC connections and anti vortex fittings available
- Municipal and commercial drinking water: NSF 61 certified liner with engineering documentation for specified projects
- Seismic and high wind sites: wall panels comply with severe earthquake loads to ASCE7-16
- Agricultural and industrial storage: engineered capacity for irrigation, processing, and process water
Ready to size your tank? Every Pioneer quote is configured for your site, fittings, and freight.
Request a QuoteOr call 1-863-261-8388 for availability and pricing.
Other Details
Specifications
| Model | Pioneer XLE 23/2 |
| Series | XLE Engineered |
| Nominal Capacity | 29,093 US gallons |
| Tank Diameter | 26' 4" |
| Wall Height | 7' 2" |
| Wall Material | ZINCALUME® steel, Grade G300, to AS1397 |
| Wall Panel Profile | PIONEER V-LOCK®, complies with AS4600 |
| Roof Trusses | Hot dipped galvanized, fully self supporting |
| Seismic Design | Wall panels comply with severe earthquake loads to ASCE7-16 |
| Fire Protection | Designed to NFPA 22 and NFPA 1142; documentation available |
| Liner | AQUALINER® Fresh, NSF/ANSI 61 certified |
| Corrosion Protection | Sacrificial magnesium anodes |
| Intended Use | Permitted and engineered projects; engineering documentation available |
| Ships From | Round Mountain, TX (FOB) |
Pack weight and crate dimensions are provided with your quote.
Technical Drawings & Guides
The AQUALINER® Fresh tank liner utilized within Pioneer Water Tanks is NSF 61 certified for drinking water storage.
Custom and Made to Order products are not returnable
