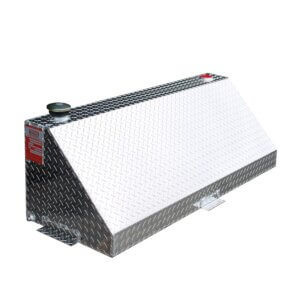

ATI AUX60W Diesel Auxiliary Fuel Tank, 60 Gallon Wedge

The ATI AUX60W is a 60 gallon diamond plate aluminum diesel auxiliary fuel tank that extends your driving range and cuts fuel stops. It is designed for ATI's gravity fed Fuel Shotz installation kit, sold separately, which connects the auxiliary tank to your factory tank through the factory fill neck: the system keeps the factory tank full until the auxiliary tank is empty, with no wires, switches, or pumps. Diesel auxiliary tanks can also feed generators and other equipment.

Meets DOT requirements for diesel auxiliary tanks, with .125" HD aluminum construction, rollover and vent protection, and internal baffles. Weld inspected, pressure tested, and clean inside and out.

Supplied in bright diamond plate aluminum finish.

Key Features

• Meets DOT requirements for diesel auxiliary fuel tanks
• .125" HD aluminum construction
• Designed for the Fuel Shotz gravity feed installation kit, sold separately
• Rollover and vent protection
• Internal baffles for strength and to prevent fuel sloshing
• Weld inspected, pressure tested, clean inside and out
• Can also be used to feed generators and other equipment
• Made in the USA by Aluminum Tank Industries

It is the user's responsibility to comply with local, state, and federal requirements pertaining to safe transportation, loading, and discharging of tank contents.

Which install kit fits my truck?

Install kits are sold separately. The kit tees into your factory filler neck hose and includes the tee, hose clamps, and a shutoff valve.

This is a gravity feed system, so there is no pump and no switching between tanks, and it does not void your truck's warranty. Your factory gauge stays on full while the auxiliary tank feeds. Once the needle comes off full, the auxiliary tank is empty.

Not sure which kit fits your truck? Call us at (863) 261-8388.

• Capacity: 60 Gallons
• Style: Wedge
• Material: .125" HD diamond plate aluminum
• Tank Dimensions: 56" L x 20" W x 18" H
• Tank Weight: 79 lbs
• Mounting: Mounting tabs extend out 1 1/2". Add 2 1/2" to overall height for the fuel cap.
• Fittings: Fill, vent/ROV, 3/8" NPT drain (gravity feed outlet)
• Fuel Compatibility: Diesel
• Compliance: Meets DOT requirements for diesel auxiliary fuel tanks
• Installation: Designed for the ATI Fuel Shotz installation kit, sold separately (AIK15FD, AIK20C, or AIK175D depending on truck)
• Finish Options: Bright diamond plate aluminum
• Country of Origin: Made in the USA

Warranty

This product is covered by a 1 year limited manufacturer warranty from Aluminum Tank Industries, Inc. against defects in materials and workmanship. If an item is found to be defective upon inspection, Aluminum Tank Industries will determine whether to repair or replace it. Damage caused by shipping and handling, improper installation, abuse, or normal wear and tear is not covered. Questions about coverage or a claim? Call us and we will help you coordinate with the manufacturer.
