90 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2090

90 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2090

The 90 Gallon Trionic Marine & RV Tank (Holding & Fresh Water) | WH-2090 is built for larger-capacity installations in boats, RVs, trailers, and other mobile applications where a rugged, rotationally molded tank is required. This rectangular polyethylene tank supports fresh/potable water storage as well as wastewater holding (grey/black water) in non-pressurized setups, and at 67" L × 21" W × 15" H it provides high capacity while remaining practical for under-deck or undercarriage placement.

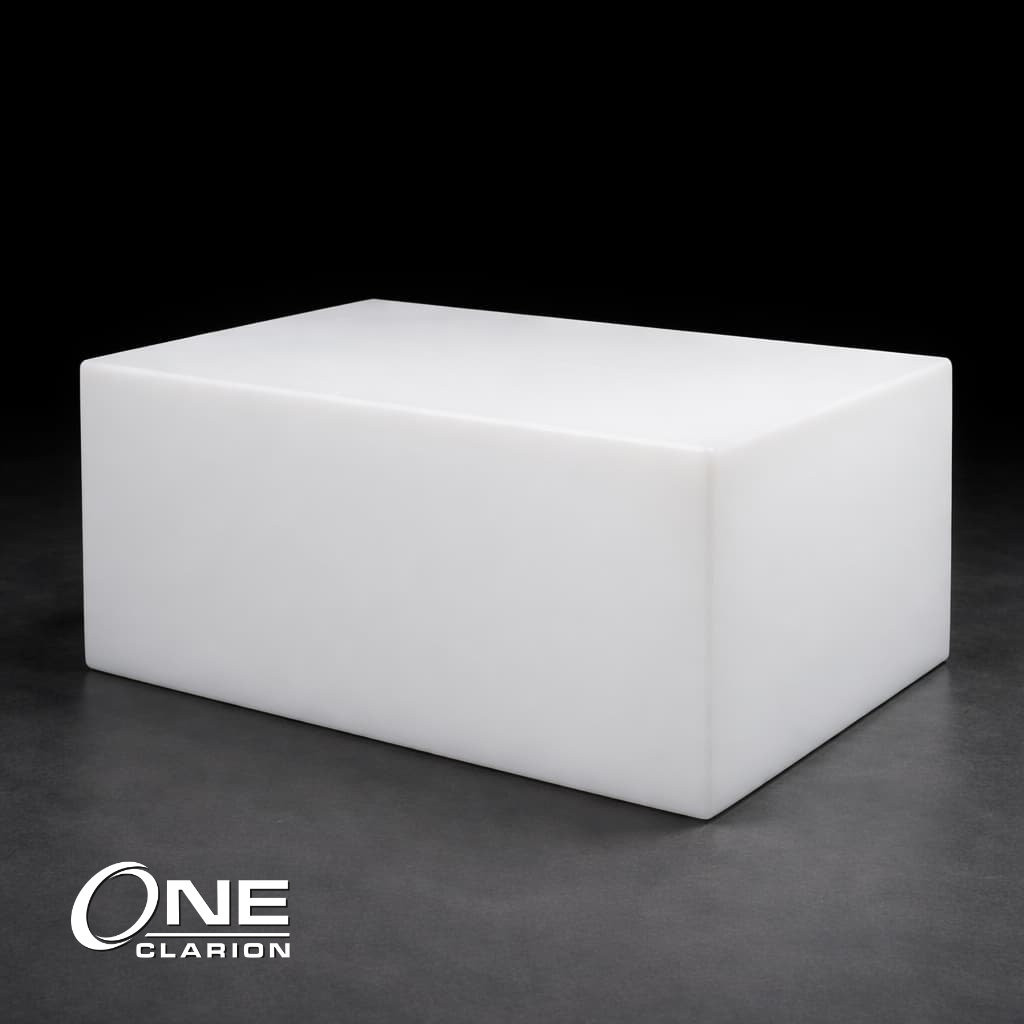

The WH-2090 is typically offered as a pre-drilled configuration with (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings located on one end (unused openings can be capped), and it is also commonly available as a blank version (B-2090) without openings for custom fitting placement and routing as needed (often paired with a DIY CF-60 custom fittings kit). The tank is manufactured as a seamless, one-piece unit with an approximate 3/8" average wall thickness, should be installed with the bottom fully supported, and is intended for storage-only use (not designed to be pressurized).

FEATURES

• Product Type: Marine & RV Tank (Holding & Fresh Water)

• Model: Trionic WH-2090

• Capacity: 90 Gallon

• Tank Shape: Rectangular

• Usability: Portable

• Environment: Above Ground

• Pressurized Use: No

• Dimensions: 67" Length × 21" Width × 15" Height

• Material / Color: Linear Low-Density Polyethylene (LLDPE), Natural White

KEY SPECIFICATIONS

• Product Type: Marine & RV Tank (Holding & Fresh Water)
• Model: Trionic WH-2090 (pre-drilled) / B-2090 (blank)
• Capacity: 90 Gallon
• Tank Shape: Rectangular
• Usability: Portable
• Environment: Above Ground
• Pressurized Use: No
• Dimensions: 67" Length × 21" Width × 15" Height
• Material: Linear Low-Density Polyethylene (LLDPE)
• Color: Natural White
• Wall Thickness: 3/8" average
• Fittings: Pre-Drilled: (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings on one end; Blank: no openings
• Compatible Accessory: DIY CF-60 Custom Fittings Kit (for blank tanks)
• Uses: Potable and fresh water storage; grey and black water holding
• Warranty: 1-year (materials and workmanship)

COMPLIANCE REFERENCES

• FDA – 21 CFR § 177.1520 – Trionic states each tank fully complies
• U.S. Coast Guard – Trionic states its tanks meet all U.S. Coast Guard regulations

SHIPPING INFORMATION

• Freight Class: 300
• Liftgate Option: Yes
• Locations: Wisconsin
• Zip Codes: 53021

Custom and Made to Order products are not returnable
