Images may be inaccurate. See specs below to ensure accuracy.
Specifications
Size
- Capacity
- 25 gal
- Length
- 20″
- Width
- 15″
- Height
- 6″
Build
- Potable Water
- Yes
Ordering
- Brand
- SITE TANKS
- SKU
- OC310000260518
- Made to order
- Yes
Key specs
- Capacity
- 25 gal
- Length
- 20″
- Width
- 15″
- Height
- 6″
- Freight to your ZIPEstimate it below or at checkout
All specifications
Size
- Capacity
- 25 gal
- Length
- 20″
- Width
- 15″
- Height
- 6″
Build
- Potable Water
- Yes
Ordering
- Brand
- SITE TANKS
- SKU
- OC310000260518
- Made to order
- Yes
Description

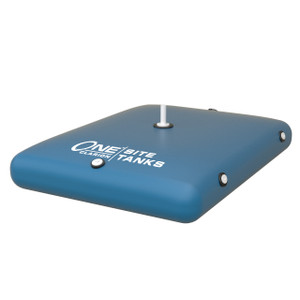

The One Clarion SITE TANKS 25 Gallon Potable Pillow Tank is a collapsible, rectangular liquid storage solution built for on-site deployment at construction, agricultural, industrial, and emergency response applications. Store up to 25 gallons in a durable, low-profile footprint that lays flat when empty and deploys quickly when needed.
Compact and Portable: With a 25-gallon capacity, this tank offers both portability and utility. Transportation and deployment are effortless, even in tight spaces.
Collapsible Design: Say goodbye to bulky tanks. The collapsible design ensures easy setup and takedown, optimizing efficiency during installation and relocation.
Versatile Applications: From ensuring safe drinking water in disaster relief efforts to providing water for municipal use, this tank is suitable for various potable water storage needs, including:
Construction: Temporary water storage during projects.
Agriculture: Irrigation purposes.
Emergency Response: Swift deployment in urgent scenarios.
Industrial Use: Storing liquids in manufacturing processes.
Environmental Remediation: Containment during spill cleanup.
Disaster Relief: Providing potable water in emergencies.
Mining Operations: Storing water in remote locations.
Municipalities: Temporary water storage during maintenance.
NSF61 Rating: Certified for potable water use according to NSF61 standards, ensuring the safety and quality of stored water.
Built to Last: Engineered with sturdy materials, the 25-gallon Pillow Tank withstands rigorous conditions, ensuring secure storage of water assets.
Effortless Maintenance: Simplify your workflow with minimal maintenance needs. The setup and user-friendly design enable you to focus on tasks.
Upgrade your potable water storage capabilities with the One Clarion SITE TANKS 25 Gallon Pillow Tank. Compact, resilient, and versatile, it's the ideal solution for your liquid storage needs.
⚠ IMPORTANT — DO NOT OVERFILL
More details
TECHNICAL DRAWINGS & GUIDES
Request DrawingManual
Flyer
KEY SPECIFICATIONS
- Tank Shape: Rectangular
- Tank Usability: Stationary
- Environment: Above Ground, Atmospheric
- Capacity (gallons): 25
- Fill Ports: Two 4"
- Vent Port: One 2" (air release during filling — NOT an overflow discharge; do not fill past Maximum Fill Dimensions)
- Drain Ports: One 4"
- ANSI / NSF 61 Approved Resin: Yes
- Dimensions (Lay Flat, Empty): 52.5" Length x 28.5" Width
- Maximum Fill Dimensions: 48" Length x 24" Width x 9" Height
- Empty Weight: 5lbs.
- Warranty: 1 Year
- Color: Blue
- Product Type: Pillow Tank
SHIPPING INFORMATION
- Locations: Texas
- Zip Codes: 77484
Custom and Made to Order products are not returnable
Shipping & delivery
- Made to order
- Built after you order, then shipped
- Freight cost
- Enter your ZIP above for an estimate, or see the rates at checkout.
- Questions
- Call (863) 261-8388, Mon–Fri, 8am–5pm EST
