Dust Killer Auto Skid
DUST CONTROL SPRAYER
1,000 & 1,600 Gallon Dump Truck Skid

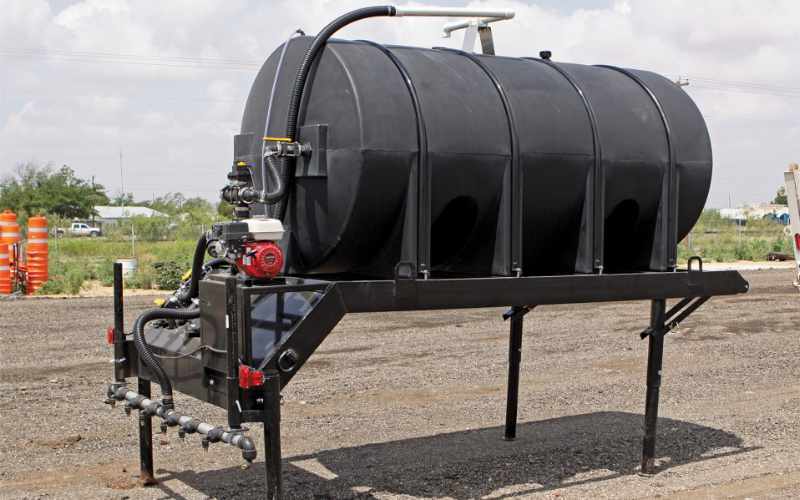

The Dust Control Skid converts a standard dump truck into a dust-control rig in minutes. Slide the skid into the bed, secure it, and the truck is ready for DOT road work, construction sites, and quarry haul roads.
Choose a 1,000, 1,250, or 1,600 gallon poly tank mounted on a 6 inch channel-iron frame with steel tie downs and folding legs. The high-output pump refills fast and throws a 25 foot sheet of water that knocks down dust in one pass.

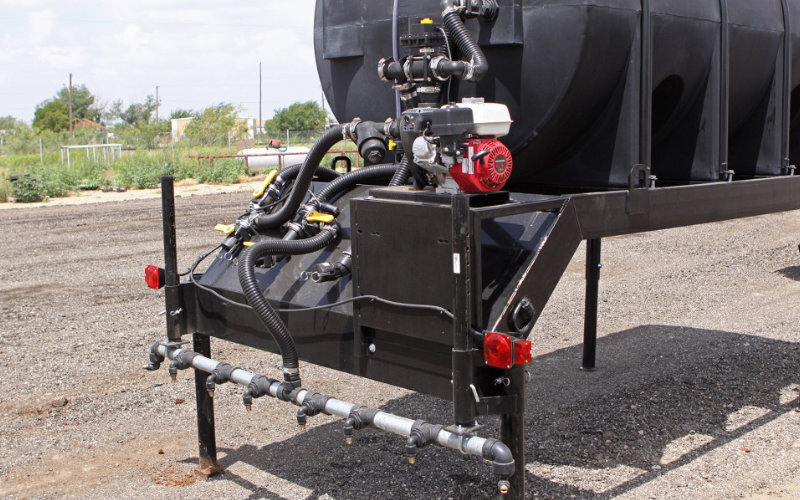

Dust Control Sprayer Features
- Algae-resistant polyethylene tank for reliable dust control
- Self-folding front legs for quick loading and removal
- Honda engine with 140 gpm pump options
- Galvanized spray bar for wide, even coverage
- 50 ft lay-flat fire hose and nozzle
Dust Control Sprayer Benefits
- Loads in minutes with no special equipment
- Tank baffles reduce sway for safe transport
- Handles dust, fire control, roads, and compaction
- 140 gpm pump sprays a 25 ft curtain
- Skid lifts out quickly when the job is done
Dust Control Sprayer Applications
- DOT road work - mount the dust control sprayer to settle shoulder dust and keep traffic clear
- Quarries and mines - a 1,600 gallon dust control skid keeps haul roads and stockpiles free of fines
- Construction sites - switch from hauling to spraying with the same dump truck skid
- Landfills and transfer stations - a removable dump truck sprayer manages dust and odor without tying up a water truck
- Farm and gravel roads - quick, on-call dust control during dry spells
Dust killer auto-skid – model comparison
| Spec | 1 000 gal | 1 025 gal | 1 250 gal | 1 600 gal |
|---|---|---|---|---|
| Poly tank capacity | 1 000 gal | 1 025 gal | 1 250 gal | 1 600 gal |
| Footprint (w × l) | 77″ × 99″ | 55″ × 144″ | 75″ × 133″ | 75″ × 133″ |
| Overall length | 128″ | 173″ | 161″ | 161″ |
| Tare weight | 1 900 lb | 1 900 lb | 2 000 lb | 2 150 lb |
| Sump / floor | 2″ sump | Full drain | Flat | Flat |
Support Files
FAQ's
Will the Dust Control Sprayer fit my 14-ft dump bed?
Yes. The 1,000 gallon Dust Control Skid is 99 inches long and 77 inches wide, so it fits most 14-foot dump beds.
How far does the Dump truck sprayer reach?
The spray bar covers up to 25 feet. Add the side-spray kit for shoulder coverage.
What is the flow rate of the 1,000 gallon Dust Control Sprayer?
With the standard 3 inch Honda pump it moves up to 140 gallons per minute, emptying the tank in about seven minutes.
Does the Dust Control Skid ship fully assembled and ready to spray?
Yes. Each Dust Control Skid ships pre-plumbed and pressure-tested. Slide it in, secure it, fill, and spray.
Is the Dump Truck Skid DOT-compliant for road transport?
Yes. The baffled tank and proper tie downs meet FMCSA cargo securement rules.
Request a quote: Water Trailers & Skids
Send your size, site and timeline; a tank specialist replies with pricing, freight and lead time.
