Fire Protection Tanks

NFPA 22 Fire Protection Water Tanks (Bolted, Corrugated, Fiberglass, Welded)

Protect people, property, and business operations with engineered fire water storage from 5,000 to 3,900,000 gallons. One Clarion delivers above-ground and underground fire suppression tanks (FSTs) with sealed engineered drawings (as required). Tanks come in different materials for unique needs. All tanks meet NFPA 22 and AWWA D103 (or equivalent) standards. Interior tank liners meet NSF/ANSI/CAN 61 requirements for potable water storage.

Why One Clarion for Fire Water Storage

• Conforms to Code: Our products meet NFPA 22 and your AHJ’s (Authority Having Jurisdiction; normally a fire marshal) requirements. Manufacturer-sealed drawings provided for AHJ review (customer coordinates with AHJ).
• Multiple tank technologies: Bolted steel, corrugated panel tanks, fiberglass tanks, and welded steel. We supply you with the tank you need.
• Mission-ready configurations: Wind/seismic rated designs, freeze protection, and appurtenances per NFPA 22—ready for industrial, healthcare, education, logistics, residential development, data centers, and more.
• Scale and speed: Modular systems ship globally and assemble quickly on prepared foundations.
• Quick Installation: We can coordinate installation with our experienced installation partners or provide a project lead to oversee the tank installation.

What “NFPA 22 Compliant” Means—In Practice

NFPA 22 is the standard governing the design and installation of water tanks for private fire protection. Your AHJ—typically a fire marshal, though sometimes a building official or an insurer—sets the requirements to be met and approves the fire protection tank design. This means that your AHJ has the final say on what meets the requirements for your fire protection tank installation. One Clarion provides sealed drawings, product data, and firefighting tank material options to support that acceptance.

Tank Types & Typical Use Cases

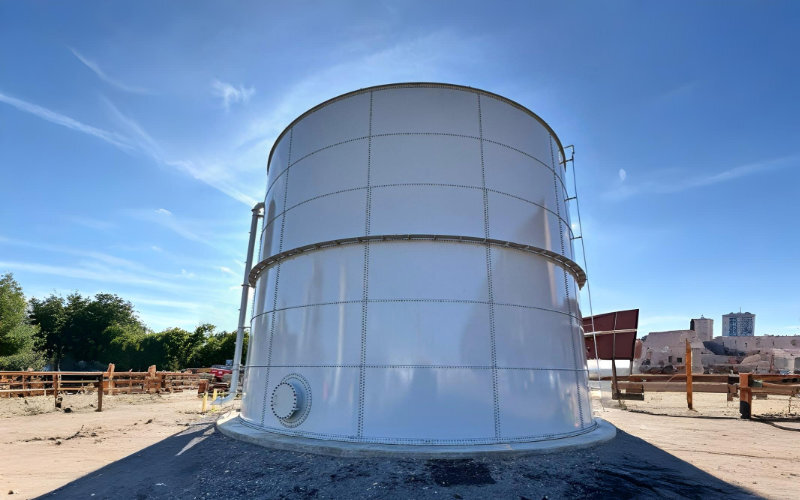

Bolted Steel (AWWA D103) — Above Ground Storage Tank

Best for: Use cases where there is heavy snow loading or a need for modularity. Highlights: Large capacities (up to 3.9 million gallons). Meets NFPA 22 regulations. Snow load options available. Modular design. Regulated by AWWA D103 reference.

Corrugated Panel Tanks — Above Ground Storage Tank

Best for: Use cases where cost-efficiency and quick installation is key. Highlights: Corrosion resistant panels. Wide range of NFPA accessories. Documented NFPA 22 equivalency for AHJ acceptance.

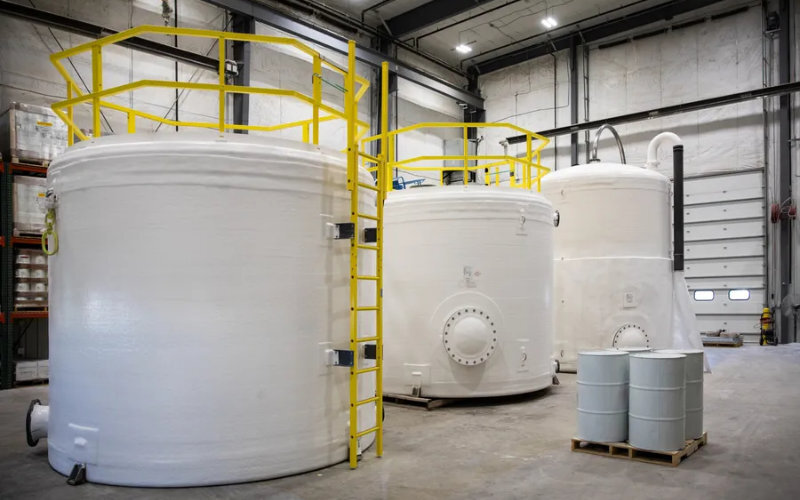

Fiberglass (FRP) — Above Ground Storage Tank or Below Grade

Best for: Corrosive environments (coastal/industrial), low maintenance, custom designs. Highlights: Corrosion resistant, custom designed, lightweight. Designed to your needs. AWWA D120 reference

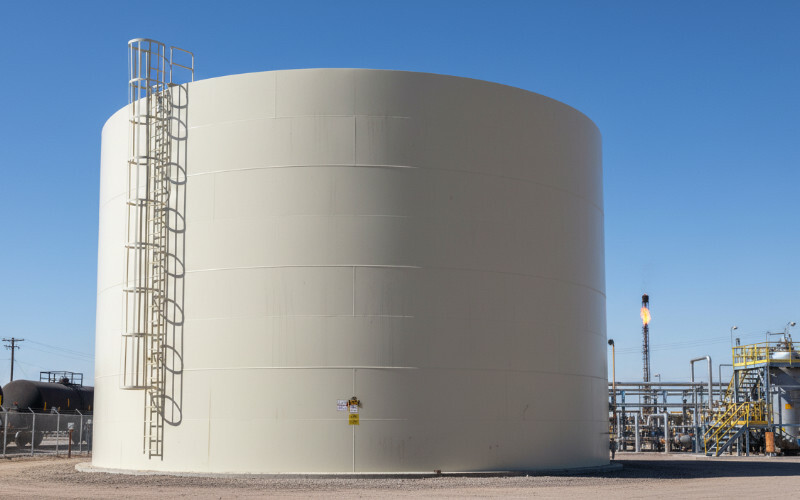

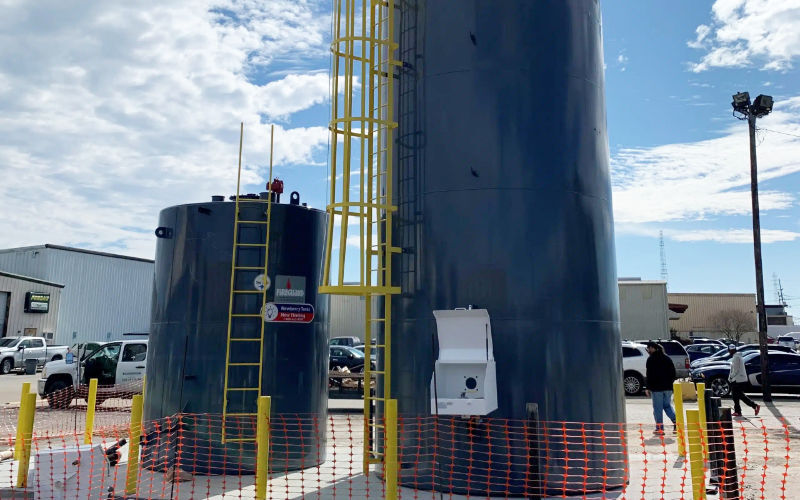

Welded Steel — Above Ground Storage Tank

Best for: Custom geometry, high seismic/wind, extreme capacities. Highlights: Custom built and large capacities. AWWA D100 reference

Capacities, Configurations & Accessories

Capacities: 5,000 to 3,900,000 gallons (select sizes in stock).

• Configurations: NFPA 22 storage tanks integrated with municipal supply, wells, or dedicated pumps.
• Appurtenances: Anti-vortex plates, supervised/lockable valves, frost-proof vents and overflows, OSHA/IBC ladders & guards, level monitoring/SCADA, sample taps, silt stops, cathodic protection, immersion heaters, insulation systems, and heat tracing.
• Structural: Wind and seismic designs per site criteria.
• Materials: Bolted Steel, Corrugated Steel, Fiberglass, and Welded Steel options available. NSF/ANSI/CAN 61 potable water liners available.

Industries We Serve

• Warehousing & Logistics
• Hospitals & Healthcare
• Schools & Campuses
• Industrial & Manufacturing
• Residential Developments
• Data Centers & Energy

We ship internationally and support AHJ documentation worldwide.

Useful Resources

• NFPA 22 & water storage tanks (NFPA blog)
• AWWA D103 (Bolted Steel)
• AWWA D100 (Welded Steel)
• AWWA D120 (Fiberglass/FRP)
• NSF/ANSI/CAN 61 overview
• Free access to NFPA codes (read-only)
