Product Description
60 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2060-1

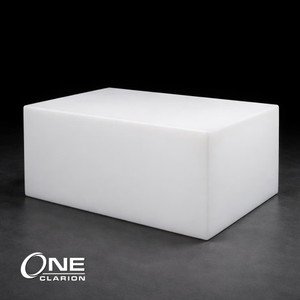

The 60 Gallon Trionic Marine & RV Tank (Holding & Fresh Water) | WH-2060-1 is designed for boats, RVs, and other mobile installations where a durable, space-efficient rectangular tank is required. This polyethylene tank supports fresh/potable water storage as well as wastewater holding (including grey and black water) in non-pressurized setups, with a footprint of 54" L × 24" W × 12" H.
Trionic water/holding tanks are rotationally molded as a seamless, one-piece design and built with approximately 3/8" average wall thickness. Standard “with fittings” configurations include (2) 1-1/2" FPT and (2) 1/2" FPT female NPT threaded openings located on one end (unused openings can be capped). For applications requiring custom fitting placement or custom routing, blank-tank options are also available with no factory openings, and the DIY CF-60 Custom Fittings Kit can be used to add fittings where needed.
Installation note: the bottom of the tank should be fully supported, and Trionic recommends using a minimum 12" flexible hose section to hose barb fittings for installation. Manufacturer warranty is 1 year (materials and workmanship).
FEATURES
-
Product Type: Marine & RV Tank (Holding & Fresh Water)
-
Model: Trionic WH-2060-1
-
Capacity: 60 Gallon
-
Tank Shape: Rectangular
-
Usability: Portable
-
Environment: Above Ground
-
Pressurized Use: No
-
ANSI / NSF 61 Approved Resin: Yes
-
Dimensions: 54" Length × 24" Width × 12" Height
-
Material / Color: Polyethylene (LDPE), Natural White
Other Details
KEY SPECIFICATIONS
- Product Type: Marine & RV Tank (Holding & Fresh Water)
- Model: Trionic WH-2060-1
- Capacity: 60 Gallon
- Tank Shape: Rectangular
- Usability: Portable
- Environment: Above Ground
- Pressurized Use: No
- Dimensions: 54" Length × 24" Width × 12" Height
- Material: Polyethylene (LDPE)
- Color: Natural White
- ANSI / NSF 61 Approved Resin: Yes
- Marine Reference: Meets U.S. Coast Guard regulations (as applicable)
- Openings (Pre-Drilled Option): (2) 1-1/2" FPT and (2) 1/2" FPT threaded openings (located on one end; unused openings can be capped)
- Blank Tank Option: Also available as a blank tank (no factory openings) for custom fitting placement
- Thread Type: Female NPT (National Pipe Thread)
- Wall Thickness: 3/8" average
- Compatible Accessory: DIY CF-60 Custom Fittings Kit (for custom fitting placement / blank-tank applications)
- Warranty: 1-year (materials and workmanship)
COMPLIANCE REFERENCES
- NSF/ANSI 61 – Drinking Water System Components (Health Effects)
- FDA – 21 CFR § 177.1520 (Olefin Polymers; Polyethylene Resin Reference)
- USCG – 33 CFR Part 159 (Marine Sanitation Devices)
- NFPA 1192 – Standard on Recreational Vehicles
SHIPPING INFORMATION
- Freight Class: 300
- Liftgate Option: Yes
- Locations: Wisconsin
- Zip Codes: 53021
