Product Description

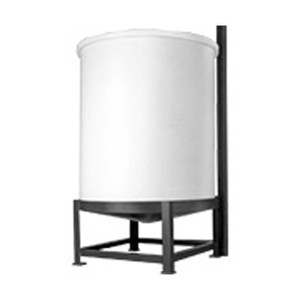

Manufactured from linear polyethylene in one piece, the 500 Gallon Chem-Tainer TC6568JA features seamless construction. This tank series is designed for either indoor or outdoor use. Cone bottoms provide for quick and complete drainage.
Tanks come standard with a Vented Manway. Non-Vented and Hinged Manways are also available. Non-vent manways are recommended for applications where chemical fumes should be vented away from the tank area.
JA Series – Industrial Series – Designed to handle contents that have a maximum specific gravity of 1.9 at 73° F. High impact and chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2. Translucent* for visible content level. Molded in calibrations. Molded in tie down slots. 30° cone angle.
*The degree of translucency varies with wall thickness and tank color.
- Complies with U.S. FDA regulation 21 CFR 177.1520 (1) 3.1 and 3.2
- Features 16" vented manway
- Specific gravity rating of 1.9 (15.8 lb / gal)
- UV inhibitors protect against direct sunlight
Other Details
TECHNICAL DRAWINGS & GUIDES
Technical Drawing: View Technical DrawingKEY SPECS
- Diameter: 65"
- Gallon Capacity: 500
- Specific Gravity: 1.9
DIMENSIONS
- Length: 65"
- Width: 65"
- Height: 68"
- Weight (lbs.): 150
LIQUID ACCESSIBILITY
- Liquid Access: 1 Outlet , 1 Manway / Lid
- Outlet / Drain 1: 2" PP Female NPT Bulkhead Fitting
- Manway / Lid 1: 16" Vented Manway
GENERAL
- Color: Natural White
- Material: Polyethylene
- FDA Approved Resin: Yes (Food Grade, Potable)
- UV Inhibitors: Yes
- Translucent: Yes
- Manufacturer: Chem-Tainer
- Manufacturer Part Number: TC6568JA
