Product Description
37 Gallon Marine & RV Tank | Holding & Fresh Water | Trionic WH-2037-2

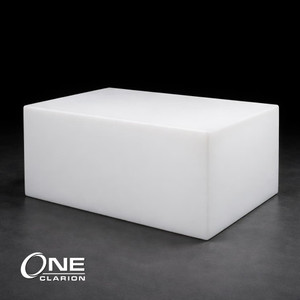

The 37 Gallon Trionic Marine & RV Tank is designed for boats, RVs, and other mobile installations that require a durable, space-efficient tank for fresh/potable water storage as well as wastewater holding, including grey and black water, in non-pressurized setups. With a footprint of 63" L × 16" W × 9" H, this rectangular polyethylene tank provides practical capacity with flexible placement.
This is a seamless, one-piece rotationally molded tank. Pre-drilled tanks include two 1-1/2" FPT and two 1/2" FPT female NPT threaded openings located on one end; unused openings can be capped. Blank tanks are available without openings, allowing you to place fittings where your routing requires; for custom fitting placement, use the DIY CF-60 Custom Fittings Kit.
The tank features an approximate 3/8" average wall thickness and should be installed with the bottom fully supported. Trionic also recommends using a minimum 12" flexible hose section to hose barb fittings for installation.
FEATURES
-
Product Type: Marine & RV Tank | Holding & Fresh Water
-
Model: Trionic WH-2037-2
-
Capacity: 37 Gallon
-
Tank Shape: Rectangular
-
Usability: Portable
-
Environment: Above Ground
-
Pressurized Use: No
-
ANSI / NSF 61 Approved Resin: Yes
-
Dimensions: 63" Length × 16" Width × 9" Height
-
Material / Color: Polyethylene, Natural White
Other Details
KEY SPECIFICATIONS
- Product Type: Marine & RV Tank (Holding & Fresh Water)
- Model: Trionic WH-2037-2
- Capacity: 37 Gallon
- Tank Shape: Rectangular
- Usability: Portable
- Environment: Above Ground
- Pressurized Use: No
- Dimensions: 63" Length × 16" Width × 9" Height
- Material: Polyethylene
- Color: Natural White
- ANSI / NSF 61 Approved Resin: Yes
- Marine Reference: Meets U.S. Coast Guard regulations (as applicable)
-
Pre-drilled vs Blank Options:
- Pre-drilled Tank: Includes threaded openings (see below).
- Blank Tank: Supplied without openings for custom fitting placement (use CF-60 kit).
- Openings (Pre-drilled Tanks): (2) 1-1/2" FPT and (2) 1/2" FPT threaded openings (located on one end)
- Thread Type: Female NPT (National Pipe Thread)
- Wall Thickness: 3/8" average
- Compatible Accessory: DIY CF-60 Custom Fittings Kit (for custom fitting placement/blank-tank applications)
- Warranty: 1-year (materials and workmanship)
COMPLIANCE REFERENCES
- NSF/ANSI 61 – Drinking Water System Components (Health Effects)
- FDA – 21 CFR § 177.1520 (Olefin Polymers; Polyethylene Resin Reference)
- USCG – 33 CFR Part 159 (Marine Sanitation Devices)
- NFPA 1192 – Standard on Recreational Vehicles
SHIPPING INFORMATION
- Freight Class: 300
- Liftgate Option: Yes
- Locations: Wisconsin
- Zip Codes: 53021
