Product Description

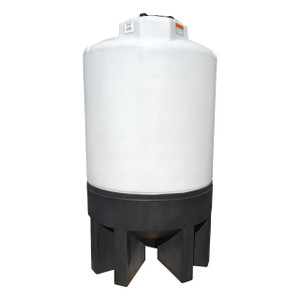

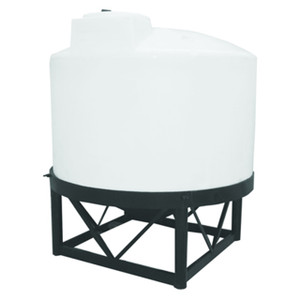

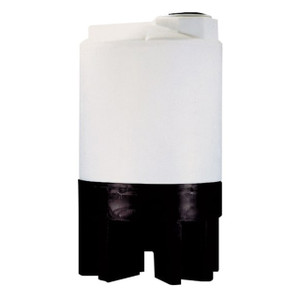

Manufactured from linear polyethylene in one piece, the 100 Gallon Chem-Tainer TC3148JP features seamless construction. This tank series is designed for either indoor or outdoor use. Cone bottoms provide for quick and complete drainage.
Tanks come standard with a Vented Manway. Non-Vented and Hinged Manways are also available. Non-vent manways are recommended for applications where chemical fumes should be vented away from the tank area.
- Complies with U.S. FDA regulation 21 CFR 177.1520 (1) 3.1 and 3.2
- Features 8" vented manway
- Specific gravity rating of 1.9 (15.8 lb / gal)
- UV inhibitors protect against direct sunlight
*The degree of translucency varies with wall thickness and tank color.
Other Details
TECHNICAL DRAWINGS & GUIDES
Technical Drawing: View Technical DrawingKEY SPECS
- Diameter: 31"
- Gallon Capacity: 100
- Specific Gravity: 1.5
DIMENSIONS
- Length: 31"
- Width: 31"
- Height: 48"
- Weight (lbs.): 80
LIQUID ACCESSIBILITY
- Liquid Access: 1 Outlet , 1 Manway / Lid
- Outlet / Drain 1: 2" PP Female NPT Bulkhead Fitting
- Manway / Lid 1: 16" Vented Manway
GENERAL
- Color: Natural White
- Material: Polyethylene
- FDA Approved Resin: Yes (Food Grade, Potable)
- UV Inhibitors: Yes
- Translucent: Yes
- Manufacturer: Chem-Tainer
- Manufacturer Part Number: TC3148JP
Product Videos
Custom Field
Capacity (gal) 100
