Flowback Tanks

Frac Flow Back Tanks

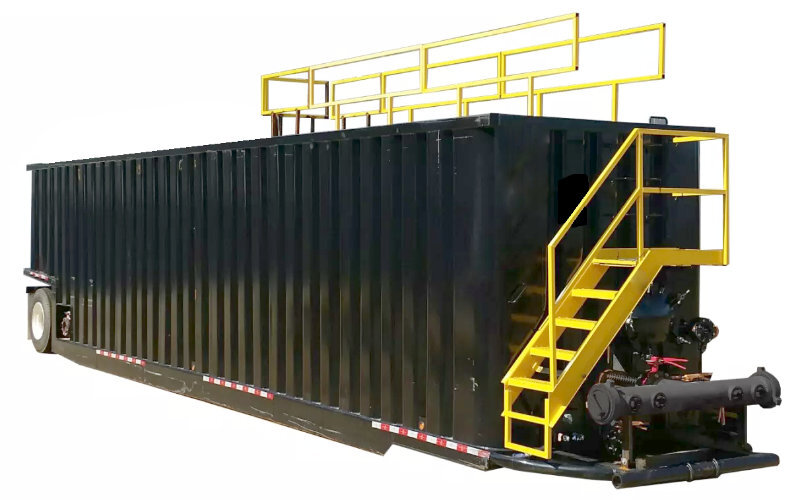

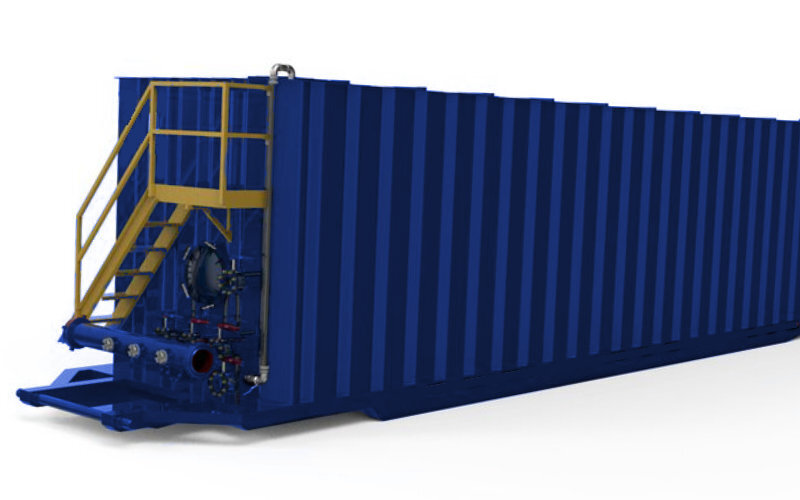

Double-Walled Steel Flow Back Tanks for Hydraulic Fracturing

Frac Flowback Tanks are a robust storage option for frac flowback and other liquids used during hydraulic fracturing operations. Made in sizes ranging from 100 to 280 BBL, these tanks have been successfully implemented for storage of water both before and after it is injected into a well. All tanks are double-walled and equipped with all the components necessary to safely store liquids.

Flowback Frac Tank Overview

Flowback fracturing tanks are engineered with a durable design to withstand the demands of hydraulic fracturing fluids. These tanks feature double-wall construction, a protective novolac epoxy lining, and stainless steel piping that is factory-installed for seamless field operation. Available in sizes ranging from 100 to 280 BBL, these tanks provide flexibility based on site requirements. For larger tanks, transportation permits are necessary due to their size.

Flowback Tank Features

Each component of the flowback tank is carefully designed to ensure durability when handling demanding water and chemical fluids. Key benefits of this tank include:

• Pre-Assembled: Delivered ready for immediate installation.
• Double-Wall Construction: Provides enhanced structural integrity.
• Access Platform: Facilitates easy maintenance and inspections.
• Thief Hatch: Allows for quick and secure tank inspection.
• Purge/Flush Line: Simplifies the cleaning process.
• Stainless Steel Piping: Ensures efficient pump-out and filling operations.
• Novolac Epoxy Lining: Protects the interior from corrosion.
• Available Sizes: Ranging from 100 to 280 BBL.

This design enables safe and efficient pumping of liquids in and out of the unit. Stainless steel piping in the filling and pump-out areas helps prevent corrosion, while purge/flush lines along the bottom prevent mineral build-up within the tank. Additionally, the tank's double-wall construction eliminates the need for external diking, simplifying installation and enhancing safety during use.

Flexible Frac Tanks

In addition to flowback tanks, we offer large storage solutions in both steel and flexible materials for safe water storage. Steel tanks are available in capacities up to 60,000 gallons, while flexible frac tanks can store up to 210,000 gallons, providing high-volume storage options for various applications.
