30° Roof Steel Tanks
Flat Roof vs. 30° Roof Water Tanks:
Which Roof Design Is Right for You?
When it comes to steel water tanks, the roof design plays a critical role in long-term performance, structural resilience, and suitability for different environmental conditions. Two of the most common options are Flat roofs and 30-degree corrugated high-rib roofs. Below, we break down the differences to help you make the right choice for your project.
Looking for water storage solutions? We can help! Call us at 1-863-261-8388 or contact us to discuss your needs.
Use Cases and Applications

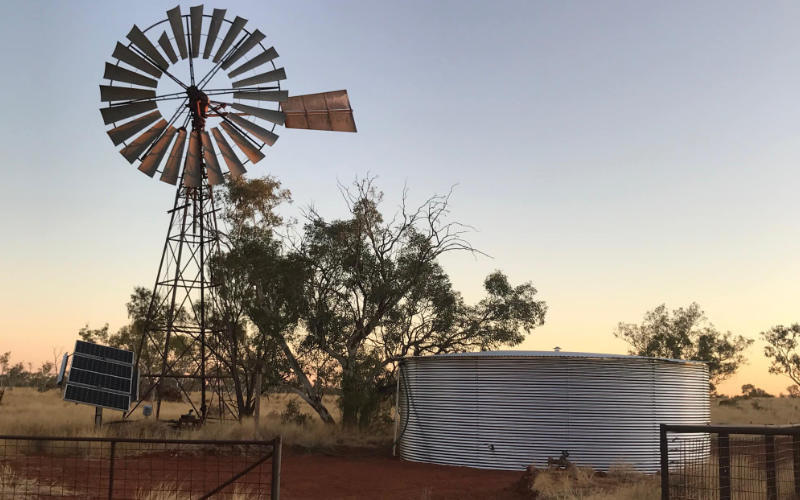

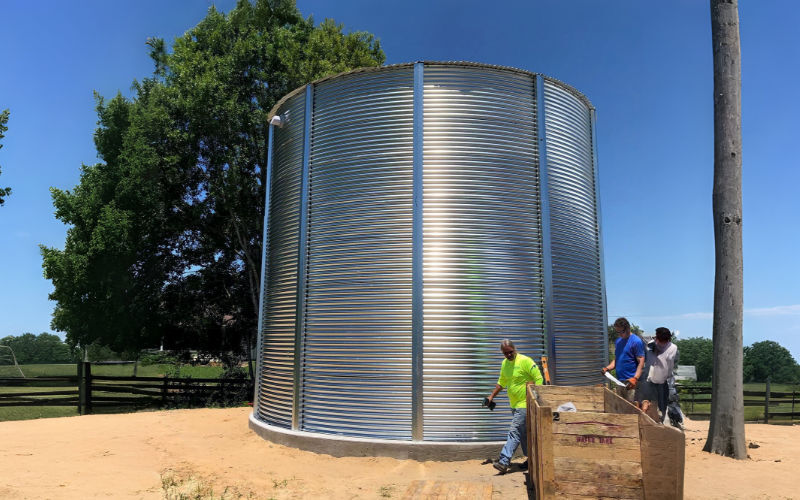

Flat Roof Tanks
These tanks are ideal for moderate climates, residential and light agricultural use, and low-profile installation needs. With lightweight steel panels and high-performance liners, they’re a smart solution for remote or solar-powered water systems, livestock watering, and rainwater harvesting. Their dome-style roof minimizes evaporation and makes them suitable for arid regions as well.

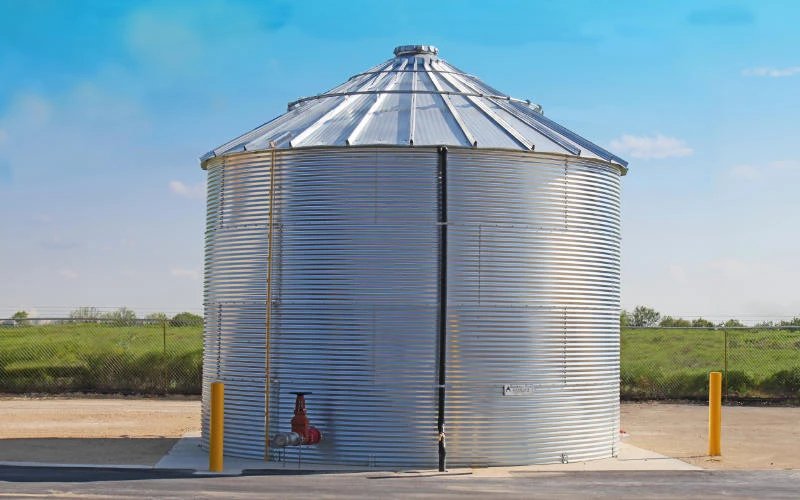

30° Roof Tanks
Engineered for more demanding conditions, 30-degree roof tanks are designed for high-capacity storage, extreme weather, and seismic zones. They’re well-suited for municipal, industrial, and large-scale agricultural use, especially where structural codes require wind or snow load ratings.
Key Material & Feature Differences
| Feature | Flat Roof Tank (Dome Style) | 30° Roof Tank |
|---|---|---|
| Roof Shape | Low-profile or domed flat seam | 30° pitched roof |
| Structural Suitability | Resists moderate snow and wind loads | Pre-engineered for seismic zone 2B, 90 MPH wind, snow loads |
| Roof Material | Corrugated galvanized dome with hot-dip coating | Corrugated high-rib steel, mechanically fastened |
| Coating | G145 galvanized steel (1.45 oz/ft²) | Standard galvanized coating |
| Liner | NSF/ANSI 61 certified food-grade polyethylene (20 mil) | Flexible membrane liner with geotextile underlay |
| Sizes Available | 5,000 to 102,000 gallons | 6′–102′ diameters depending on roof configuration |
| Roof Add-Ons | Gutter system, access hatch, overflow w/ mosquito guard | Firefighting accessories, anti-vortex fittings |
| Best For | Livestock, solar/wind water systems, well water storage | Irrigation, fire protection, municipal or seismic zones |
Pros and Cons
Flat Roof Tanks – Pros
- More compact and cost-effective for smaller volumes
- UV-resistant and evaporation-minimizing design
- Suitable for well water and rainwater harvesting
- Available with multiple fittings and optional upgrades
- 20-year warranty and low maintenance
Flat Roof Tanks – Cons
- Less structural support in extreme snow zones
- Limited pitch may not meet some building codes
30° Roof Tanks – Pros
- Designed for code compliance in seismic and snow zones
- Superior strength for wind and environmental loads
- Ideal for high-volume or mission-critical water systems
- Pre-engineered and scalable to large capacities
30° Roof Tanks – Cons
- Larger footprint and taller profile
- Slightly higher upfront cost
- May require additional permitting or site prep
Who Should Choose Which?
- Choose a flat-roof tank if you need a low-profile, low-maintenance solution for moderate conditions, prfect for off-grid installations, farms, or areas where roof snow load isn’t a concern.
- Choose a 30-degree roof tank if you're in a region prone to snow, seismic activity, or high wind, or if you need larger storage volumes with code-compliant design.
Final Recommendation
For smaller-scale water systems, flat-roof tanks provide an affordable, efficient, and field-proven solution with minimal upkeep. They're especially effective for well water and livestock applications, and their dome design helps reduce evaporation and contamination.
If your project requires compliance with wind or snow load requirements, the 30-degree roof tank offers unmatched structural resilience and long-term durability. While the investment may be higher, it's built for safety, longevity, and peace of mind, especially in mission-critical or high-volume settings.
Not Sure Which Roof Type Is Right for You? Let’s Talk.
Choosing between a flat roof and a 30° roof tank isn’t always black and white. In some cases, a flat roof tank, paired with the right structural support, can still meet snow or wind load requirements. Give us a call, and we’ll help you evaluate your project, code requirements, and site conditions to find the best corrugated bolted steel tank solution for your needs. Whether it’s customizing a setup or guiding you through your options, we’re here to help you get it right the first time.
